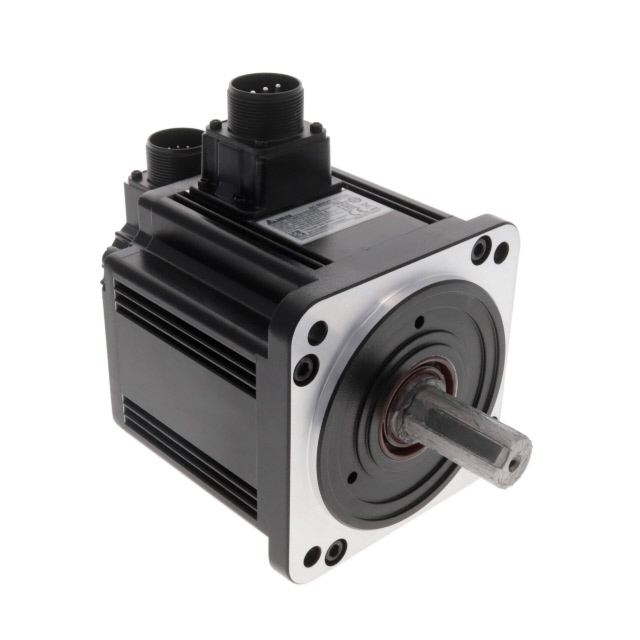

ECMA-E11315RS
ObsoleteDelta Electronics/Industrial Automation
SERVOMOTOR 2000 RPM 220V
Deep-Dive with AI
Search across all available documentation for this part.
ECMA-E11315RS
ObsoleteDelta Electronics/Industrial Automation
SERVOMOTOR 2000 RPM 220V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECMA-E11315RS |
|---|---|
| Approval Agency | CE, cURus |
| Diameter - Shaft [diameter] | 0.866 in |
| Diameter - Shaft [diameter] | 22 mm |
| Encoder Type | Incremental |
| Features | Key, Oil Seal |
| Function | Servomotor |
| Length - Shaft and Bearing [x] | 55 mm |
| Length - Shaft and Bearing [x] | 2.165 in |
| Mounting Hole Spacing | 5.709 in |
| Mounting Hole Spacing | 145 mm |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power - Rated | 1500 W |
| RPM | 2000 RPM |
| Size / Dimension [x] | 5.118 in |
| Size / Dimension [x] | 130 mm |
| Size / Dimension [y] | 130 mm |
| Size / Dimension [y] | 5.118 " |
| Termination Style | Cable with Connector |
| Torque - Max Momentary (oz-in / mNm) | 21480 mNm |
| Torque - Max Momentary (oz-in / mNm) | 3042 oz-in |
| Torque - Rated (oz-in / mNm) | 1014 oz-in |
| Torque - Rated (oz-in / mNm) | 7160 mNm |
| Type | AC Motor |
| Voltage - Rated | 220 VAC |
ECMA-E Series
| Part | Termination Style | Type | Operating Temperature [Max] | Operating Temperature [Min] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Approval Agency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | RPM | Mounting Hole Spacing | Mounting Hole Spacing | Function | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Power - Rated | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Encoder Type | Voltage - Rated | Features | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Mounting Hole Spacing | Diameter - Shaft [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 4057 oz-in | 28650 mNm | CE cURus | 5.118 in | 130 mm | 5.118 " | 130 mm | 2000 RPM | 5.709 in | 145 mm | Servomotor | 0.866 in | 22 mm | 2 kW | 1352 oz-in | 9550 mNm | Absolute | 220 VAC | Key Oil Seal | 55 mm | 2.165 in | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 6085 oz-in | 42970 mNm | CE cURus | 7.087 " | 180 mm | 7.087 in | 180 mm | 2000 RPM | 7.874 " | Servomotor | 1.378 in | 3 kW | 2028 oz-in | 14320 mNm | Incremental | 220 VAC | Key Oil Seal | 79 mm | 3.11 in | 200 mm | 35 mm | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 1014 oz-in | 7160 mNm | CE cURus | 5.118 in | 130 mm | 5.118 " | 130 mm | 2000 RPM | 5.709 in | 145 mm | Servomotor | 0.866 in | 22 mm | 500 W | 338.5 oz-in | 2390 mNm | Absolute | 220 VAC | Brake Key Oil Seal | 55 mm | 2.165 in | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 4057 oz-in | 28650 mNm | CE cURus | 5.118 in | 130 mm | 5.118 " | 130 mm | 2000 RPM | 5.709 in | 145 mm | Servomotor | 0.866 in | 22 mm | 2 kW | 1352 oz-in | 9550 mNm | Incremental | 220 VAC | Key Oil Seal | 55 mm | 2.165 in | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 4057 oz-in | 28650 mNm | CE cURus | 5.118 in | 130 mm | 5.118 " | 130 mm | 2000 RPM | 5.709 in | 145 mm | Servomotor | 0.866 in | 22 mm | 2 kW | 1352 oz-in | 9550 mNm | Absolute | 220 VAC | Brake Key Oil Seal | 55 mm | 2.165 in | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 2025 oz-in | 14300 mNm | CE cURus | 5.118 in | 130 mm | 5.118 " | 130 mm | 2000 RPM | 5.709 in | 145 mm | Servomotor | 0.866 in | 22 mm | 1000 W | 675.5 oz-in | 4770 mNm | Incremental | 220 VAC | Key Oil Seal | 55 mm | 2.165 in | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 1014 oz-in | 7160 mNm | CE cURus | 5.118 in | 130 mm | 5.118 " | 130 mm | 2000 RPM | 5.709 in | 145 mm | Servomotor | 0.866 in | 22 mm | 500 W | 338.5 oz-in | 2390 mNm | Incremental | 220 VAC | Key Oil Seal | 55 mm | 2.165 in | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 6085 oz-in | 42970 mNm | CE cURus | 7.087 " | 180 mm | 7.087 in | 180 mm | 2000 RPM | 7.874 " | Servomotor | 1.378 in | 3 kW | 2028 oz-in | 14320 mNm | Incremental | 220 VAC | Key Oil Seal | 79 mm | 3.11 in | 200 mm | 35 mm | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 3042 oz-in | 21480 mNm | CE cURus | 5.118 in | 130 mm | 5.118 " | 130 mm | 2000 RPM | 5.709 in | 145 mm | Servomotor | 0.866 in | 22 mm | 1500 W | 1014 oz-in | 7160 mNm | Absolute | 220 VAC | Brake Key Oil Seal | 55 mm | 2.165 in | ||
Delta Electronics/Industrial Automation | Cable with Connector | AC Motor | 40 °C | 0 °C | 3042 oz-in | 21480 mNm | CE cURus | 5.118 in | 130 mm | 5.118 " | 130 mm | 2000 RPM | 5.709 in | 145 mm | Servomotor | 0.866 in | 22 mm | 1500 W | 1014 oz-in | 7160 mNm | Incremental | 220 VAC | Key Oil Seal | 55 mm | 2.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 776.60 | |
Description
General part information
ECMA-E Series
AC Motor Servomotor 2000 RPM 1.5kW Incremental 220VAC
