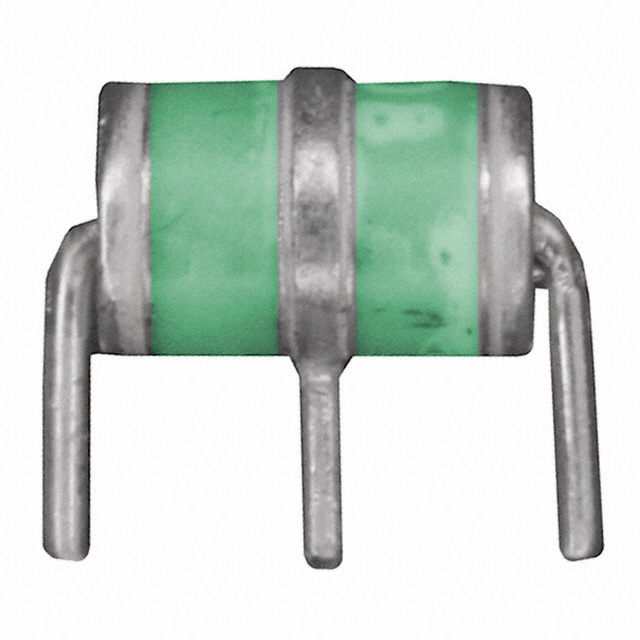

2036-47-C2

Obsolete

Bourns Inc.

GDT 470V 10KA 3 POLE TH

Search across all available documentation for this part.

Obsolete

Bourns Inc.

GDT 470V 10KA 3 POLE TH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Gas Discharge Tube 470 V 10000A (10kA) ±20% 3 Pole Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2036-47-C2	2036 Series

Fail Short	False	False, True
Impulse Discharge Current (8/20µs)	10000 A	10000 A
Impulse Discharge Current (8/20µs)	10 kA	10 kA
Mounting Type	Through Hole	Surface Mount, User Defined, Through Hole
Number of Poles	3	3
Package / Case	Axial Cylinder, 3 Lead (Radial Bend)	3-SMD Cylinder Square End, Cylinder No Lead, 3 Terminal, Axial Cylinder, 3 Lead (Radial Bend), Axial Cylinder, 3 Lead (T-Shape), Axial Cylinder, Radial Bend
Tolerance	20 %	20 - 25 %
Voltage - DC Spark Over (Nom)	470 V	75 - 600 V

GDT 90V 10KA 3 POLE SMD

...

Part	Package / Case	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Number of Poles	Mounting Type	Tolerance	Voltage - DC Spark Over (Nom)
Bourns Inc. 2036-09-SMLF	3-SMD Cylinder Square End	10000 A	10 kA	3	Surface Mount	20 %	90 V
Bourns Inc. 2036-47-ALF	Cylinder No Lead, 3 Terminal	10000 A	10 kA	3	User Defined	20 %	470 V
Bourns Inc. 2036-40-A	Cylinder No Lead, 3 Terminal	10000 A	10 kA	3	User Defined	20 %	400 V
Bourns Inc. 2036-07-B2	Axial Cylinder, 3 Lead (Radial Bend)	10000 A	10 kA	3	Through Hole	20 %	75 V
Bourns Inc. 2036-60-B3	Axial Cylinder, 3 Lead (Radial Bend)	10000 A	10 kA	3	Through Hole	20 %	600 V
Bourns Inc. 2036-07-ALF	Cylinder No Lead, 3 Terminal	10000 A	10 kA	3	User Defined	20 %	75 V
Bourns Inc. 2036-47-SMLF	3-SMD Cylinder Square End	10000 A	10 kA	3	Surface Mount	20 %	470 V
Bourns Inc. 2036-25-C2	Axial Cylinder, 3 Lead (Radial Bend)	10000 A	10 kA	3	Through Hole	20 %	250 V
Bourns Inc. 2036-35-SM	3-SMD Cylinder Square End	10000 A	10 kA	3	Surface Mount	20 %	350 V
Bourns Inc. 2036-42-C2	Axial Cylinder, 3 Lead (Radial Bend)	10000 A	10 kA	3	Through Hole	20 %	420 V
