ATEP-RY-Z

Active

Menics

COMPLETE UNIT RED/YL FLSH 2STACK

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT RED/YL FLSH 2STACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 218.00

General part information

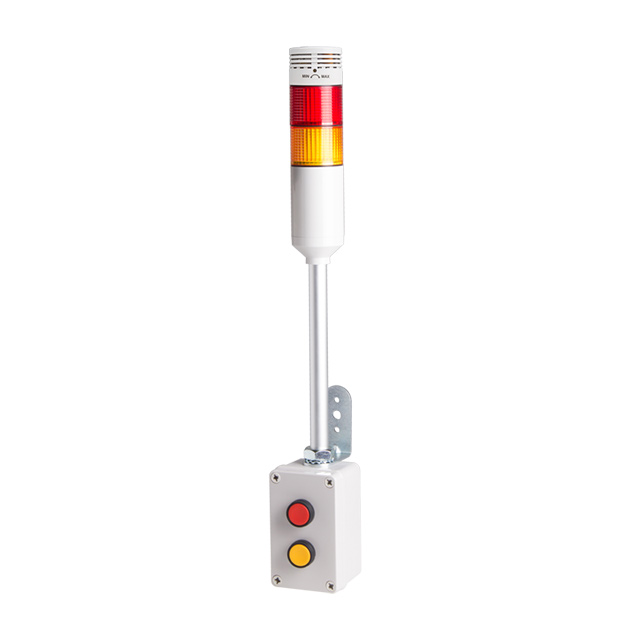

Stack Light Complete Unit Red, Yellow LED Adjustable Volume, Pushbutton Control Cable with Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ATEP-RY-Z	ATEP-R Series

Features	Pushbutton Control, Adjustable Volume	Pushbutton Control, Adjustable Volume
Function - Audible	Continuous	Continuous
Function - Lighting	Steady, Flashing	Steady, Flashing
Light Color	Red, Yellow	Red, Green, Yellow, Blue, Clear
Number of Stacks	2	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Cable with Connector	Cable with Connector
Type	Complete Unit	Complete Unit
Voltage - Supply	110 VAC/DC	110 VAC/DC

COMPLETE UNIT GR/R FLASH 2STACK

Part	Number of Stacks	Type	Function - Audible	Termination Style	Voltage - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Light Color	Features	Function - Lighting
Menics ATEP-RG-Z	2	Complete Unit	Continuous	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Green, Red	Adjustable Volume, Pushbutton Control	Flashing, Steady
Menics ATEP-RYGB	4	Complete Unit		Cable with Connector	110 VAC/DC	-15 °C	40 °C	Blue, Green, Red, Yellow	Pushbutton Control	Flashing, Steady
Menics ATEP-RYG-B	3	Complete Unit	Continuous	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Green, Red, Yellow	Pushbutton Control	Flashing, Steady
Menics ATEP-RY	2	Complete Unit		Cable with Connector	110 VAC/DC	-15 °C	40 °C	Red, Yellow	Pushbutton Control	Flashing, Steady
Menics ATEP-RG-B	2	Complete Unit	Continuous	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Green, Red	Pushbutton Control	Flashing, Steady
Menics ATEP-R-Z	1	Complete Unit	Continuous	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Red	Adjustable Volume, Pushbutton Control	Flashing
Menics ATEP-RYG-Z	3	Complete Unit	Continuous	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Green, Red, Yellow	Adjustable Volume, Pushbutton Control	Flashing, Steady
Menics ATEP-RYGB-B	4	Complete Unit	Continuous	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Blue, Green, Red, Yellow	Pushbutton Control	Flashing, Steady
Menics ATEP-R-B	1	Complete Unit	Continuous	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Red	Pushbutton Control	Flashing
Menics ATEP-RY-B	2	Complete Unit	Continuous	Cable with Connector	110 VAC/DC	-15 °C	40 °C	Red, Yellow	Pushbutton Control	Flashing, Steady
