UW-09-515-S(F)D

Active

Floyd Bell Inc

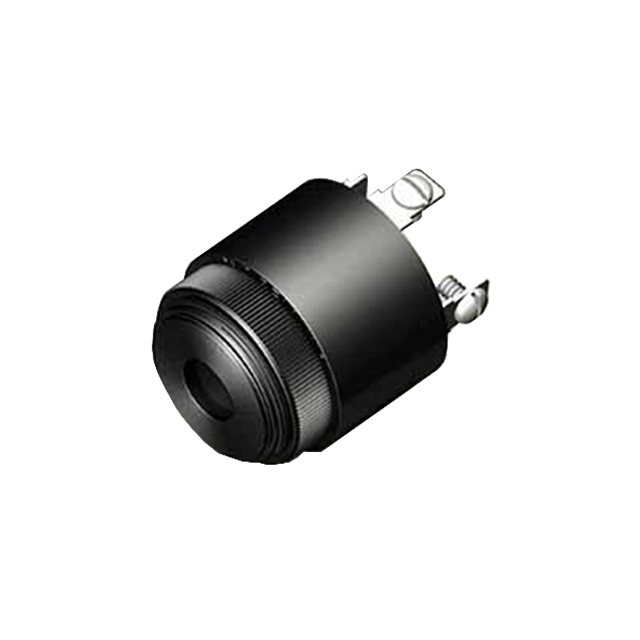

BUZZER PIEZO 35.81MM PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UW-09-515-S(F)D

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UW-09-515-S(F)D

Approval Agency	UR, UL
Current - Supply [Max]	80 mA
Current - Supply [Min]	35 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.1 kHz
Height - Seated (Max) [Max] [z]	35.05 mm
Height - Seated (Max) [Max] [z]	1.38 in
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	DC
Operating Mode	Warble, Fast, Single Tone
Port Location	Top
Size / Dimension [diameter]	1.41 in
Size / Dimension [diameter]	35.81 mm
Sound Pressure Level (SPL)	109 dB
Technology	Piezo
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	15 V
Voltage Range [Min]	5 VDC

UW-09 Series

Part	Frequency	Current - Supply [Max]	Current - Supply [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Input Type	Ingress Protection	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Driver Circuitry	Voltage Range [Min]	Voltage Range [Max]	Port Location	Sound Pressure Level (SPL)	Technology	Termination	Approval Agency	Operating Mode
Floyd Bell Inc UW-09-515-Q(S)D	2.1 kHz	80 mA	35 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	5 VDC	15 V	Top	109 dB	Piezo	Quick Connect Tab - 0.250" (6.35mm)	UL UR	Single Tone Slow Warble
Floyd Bell Inc UW-09-515-Q(S)	2.1 kHz	80 mA	35 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	5 VDC	15 V	Top	109 dB	Piezo	Quick Connect Tab - 0.250" (6.35mm)	UL UR	Warble Slow
Floyd Bell Inc UW-09-628-Q(S)D	2.1 kHz	50 mA	20 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	6 VDC	28 VDC	Top	109 dB	Piezo	Quick Connect Tab - 0.250" (6.35mm)	UL UR	Single Tone Slow Warble
Floyd Bell Inc UW-09-628-S(S)	2.1 kHz	50 mA	20 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	6 VDC	28 VDC	Top	109 dB	Piezo	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	UL UR	Warble Slow
Floyd Bell Inc UW-09-628-S(S)D	2.1 kHz	50 mA	20 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	6 VDC	28 VDC	Top	109 dB	Piezo	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	UL UR	Single Tone Slow Warble
Floyd Bell Inc UW-09-515-S(S)	2.1 kHz	80 mA	35 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	5 VDC	15 V	Top	109 dB	Piezo	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	UL UR	Warble Slow
Floyd Bell Inc UW-09-515-W(S)	2.1 kHz	80 mA	35 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	5 VDC	15 V	Top	109 dB	Piezo	Wire Leads	UL UR	Warble Slow
Floyd Bell Inc UW-09-628-W(S)	2.1 kHz	50 mA	20 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	6 VDC	28 VDC	Top	109 dB	Piezo	Wire Leads	UL UR	Warble Slow
Floyd Bell Inc UW-09-628-Q(F)	2.1 kHz	50 mA	20 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	6 VDC	28 VDC	Top	109 dB	Piezo	Quick Connect Tab - 0.250" (6.35mm)	UL UR	Warble Fast
Floyd Bell Inc UW-09-515-S(S)D	2.1 kHz	80 mA	35 mA	1.41 in	35.81 mm	DC	IP68 - Dust Tight Waterproof	35.05 mm	1.38 in	Indicator Internally Driven	5 VDC	15 V	Top	109 dB	Piezo	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	UL UR	Single Tone Slow Warble

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.96

Description

General part information

UW-09 Series

Buzzers Indicator, Internally Driven Piezo 35 ~ 80mA 2.1kHz 109dB @ 15V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
