0711218
ObsoletePhoenix Contact
TERM BLK SCREW CLAMP 1POS GRAY
0711218
ObsoletePhoenix Contact
TERM BLK SCREW CLAMP 1POS GRAY
Description
General part information
0711218

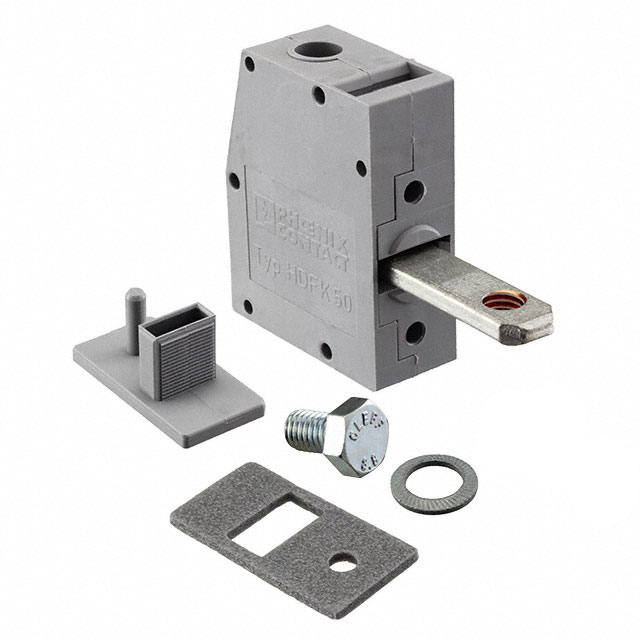

1 Position Terminal Block Bolt/Screw Clamp - Wire Entry 90° to Panel Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | 0711218 |
|---|---|
| Color | Gray |
| Current - UL | 150 A |
| Front Panel Wire Connection (Method) | Bolt, Screw Clamp |
| Number of Levels | 1 |
| Panel Mount Count | 2 Piece |
| Panel Mount Type | 2 Piece |
| Panel Thickness (Max) | 0.236 in |
| Panel Thickness (Min) | 0.039 in |
| Positions Per Level | 1 |
| Rear Panel Wire Connection | Screw Terminal |
| Voltage - UL | 600 V |
| Width | 0.74 in |
| Wire Entry Angle (to Panel) | 90 ° |
| Wire Gauge | 1/0-6 AWG |
