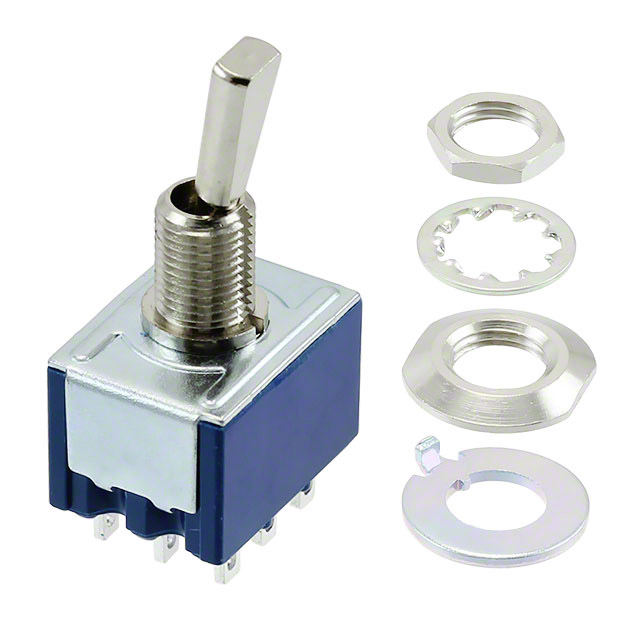

8C3011-Z
ActiveNidec Components Corporation
SWITCH TOGGLE 3PDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8C3011-Z
ActiveNidec Components Corporation
SWITCH TOGGLE 3PDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8C3011-Z |
|---|---|
| Actuator Length [x] | 11.4 mm |
| Actuator Type | Flat Anti-Rotation |
| Bushing Thread | 1/4-40 |
| Circuit | 3PDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 50000 Cycles |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.54 | |
| 10 | $ 11.33 | |||
| 25 | $ 10.79 | |||
| 50 | $ 10.24 | |||
| 100 | $ 9.88 | |||
| 250 | $ 9.27 | |||
| 500 | $ 8.48 | |||
| 1000 | $ 7.50 | |||
Description
General part information
8C3011-Z
Toggle Switch 3PDT Panel Mount
Documents
Technical documentation and resources
