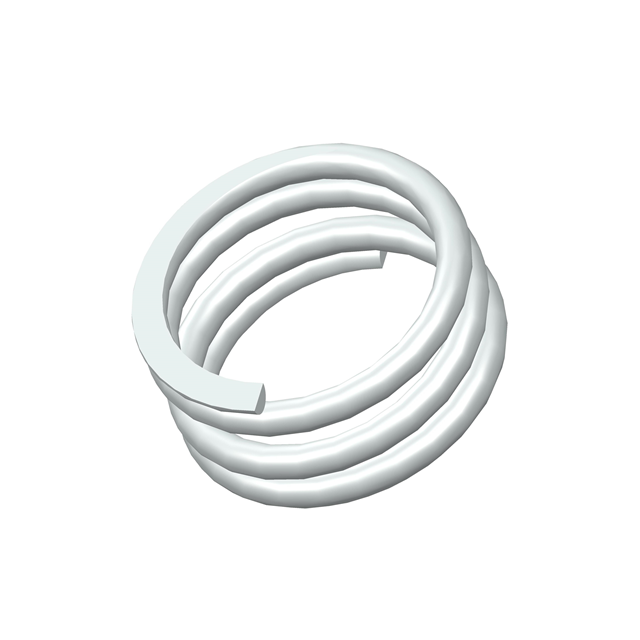

S-273CS
ActiveCentury Spring Corp
COMP O=1.750,L= .84,W= .177
S-273CS
ActiveCentury Spring Corp
COMP O=1.750,L= .84,W= .177
Description
General part information
S-273CS
COMP O=1.750,L= .84,W= .177
Technical Specifications
Parameters and characteristics for this part
| Specification | S-273CS |
|---|---|
| Diameter - Inside | 1.396 in |
| Diameter - Outside | 1.75 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.84 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 214 lbs/in |
| Type | Compression |
| Wire Diameter | 0.177 in |
