Description
General part information

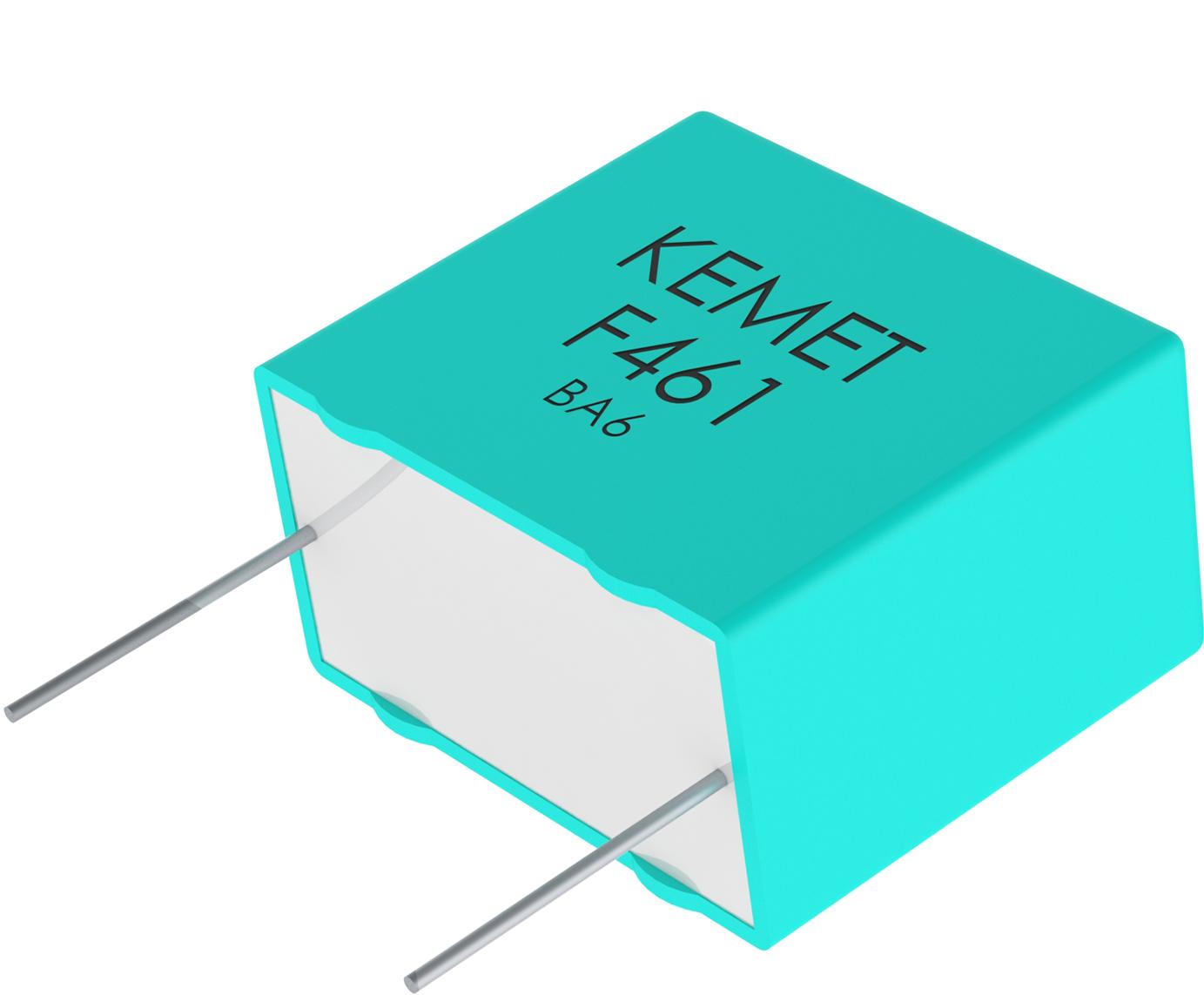

F461AG104J160A
CAP FILM 0.1UF 160V PP 5%( 13 X 4 X 9MM) RADIAL PLASTIC RECTANGULAR CAN 10MM 105°C BAG
Technical Specifications
Parameters and characteristics for this part
| Specification | F461AG104J160A |
|---|---|
| Applications | High Pulse, DV/DT |
| Capacitance | 0.1 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.354 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.157 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 90 V |
| Voltage Rating - DC | 160 V |
