9535 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, COMPUTER EIA RS-232, SHIELDED, 5 CONDUCTOR, 24 AWG, 100 FT, 30.5 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

9535 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, COMPUTER EIA RS-232, SHIELDED, 5 CONDUCTOR, 24 AWG, 100 FT, 30.5 M

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9535 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.189 in
Jacket (Insulation) Diameter [diameter]	4.8 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

9535 Series

Part	Shield Type	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Wire Gauge	Conductor Insulation	Features	Shield Material	Jacket Color	Length [x]	Length [x]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Shield Coverage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Voltage	Length	Length
Belden Inc. 9535 060100	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome	30.5 m	100 ft	Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm
Belden Inc. 9535 0601000	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome			Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm	UL Style 2464	300 V	1000 ft	304.8 m
Belden Inc. 9535 060U1000	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome			Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm	UL Style 2464	300 V	1000 ft	304.8 m
Belden Inc. 9535 060U500	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome	152.4 m	500 '	Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm	UL Style 2464	300 V
Belden Inc. 9535 0605000	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome			Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm	UL Style 2464	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 259.68
		2	$ 247.00
		3	$ 239.83
		5	$ 231.05
		7	$ 225.41
		10	$ 219.55
		25	$ 205.08
		50	$ 194.64
Newark	Spool of 100	1	$ 277.82
		5	$ 267.08
		10	$ 257.87

Description

General part information

9535 Series

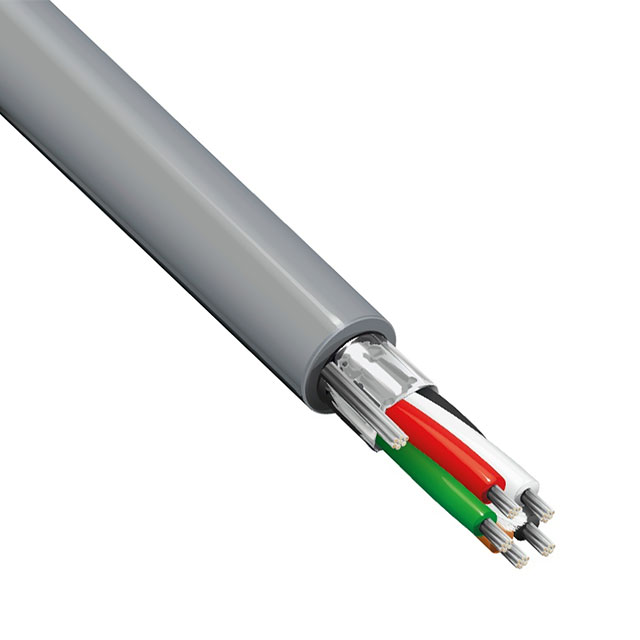

The 9535 060100 is a 5-conductor chrome shielded Computer Cable with semi-rigid PVC insulation, tinned copper drain wire, tinned copper conductors and PVC jacket. The computer cable features Beldfoil® aluminum foil-polyester tape shield (100% coverage).
