9729 0601000

Active

Belden Inc.

CABLE 4COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9729 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket Color	Number of Conductors	Ratings	Wire Gauge	Shield Type	Conductor Material	Usage	Jacket (Insulation) Material	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Voltage	Features	Length	Length
Belden Inc. 9729 060500	Chrome	4	UL Style 2919	24 AWG	Foil	Copper Tinned	Computer	Poly-Vinyl Chloride (PVC)	Aluminum	-20 C	80 C	Foam Polyethylene (FPE)	Multi-Conductor	500 '	152.4 m	0.048 in	1.219 mm	32 AWG	7	100 %	300 V	Drain Wire
Belden Inc. 9729 0601000	Chrome	4	UL Style 2919	24 AWG	Foil	Copper Tinned	Computer	Poly-Vinyl Chloride (PVC)	Aluminum	-20 C	80 C	Foam Polyethylene (FPE)	Multi-Conductor			0.048 in	1.219 mm	32 AWG	7	100 %	300 V	Drain Wire	1000 ft	304.8 m
Belden Inc. 9729 060100	Chrome	4		24 AWG	Foil	Copper Tinned		Poly-Vinyl Chloride (PVC)	Aluminum	-20 C	80 C	Foam Polyethylene (FPE)	Multi-Pair	100 ft	30.5 m	0.048 in	1.219 mm	32 AWG	7	100 %		Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.91

General part information

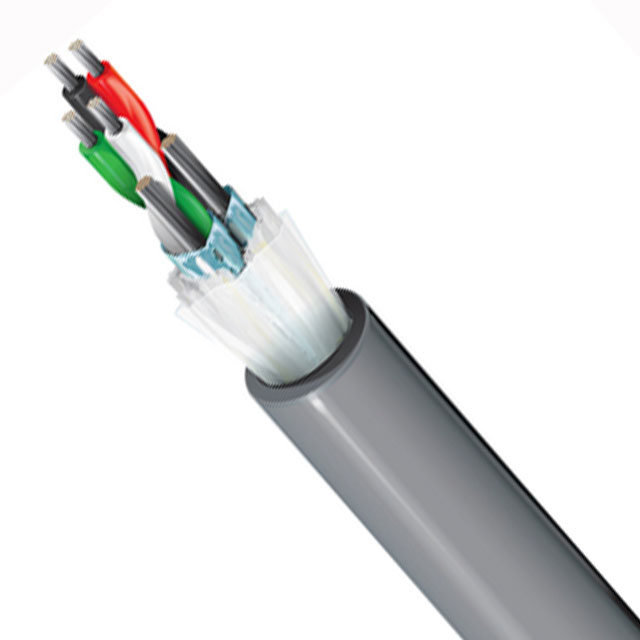

4 (2 Pair Twisted) Conductor Multi-Conductor Cable Chrome 24 AWG Foil 1000.0' (304.8m)
