GSF1.1202.41
ActiveSCHURTER Inc.

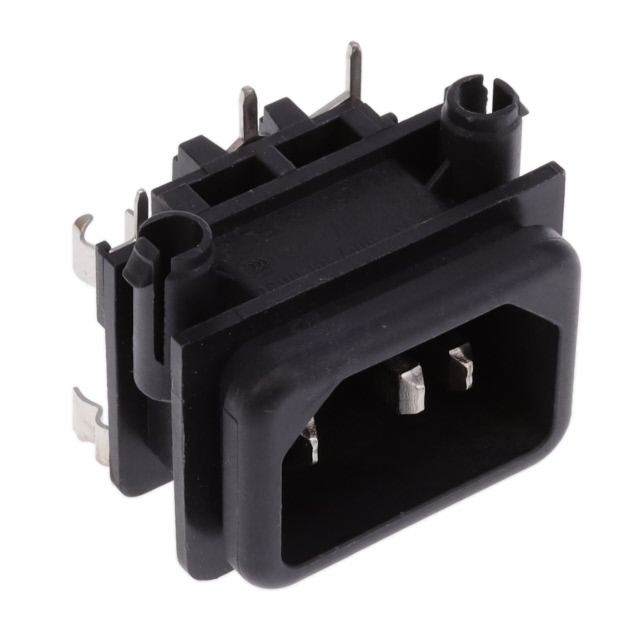

PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSF1.1202.41
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GSF1.1202.41 | GSF1.1202 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, UL, CSA, ENEC | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder | Fuse Holder |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount, Snap-In | Through Hole, Right Angle, Panel Mount, Snap-In |
| Panel Cutout Dimensions | - | 30.3 mm |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Thickness | 2 mm | 2 - 6 mm |
| Panel Thickness | 0.079 in | 0.079 - 0.236 in |
| Termination | Solder | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
GSF1.1202 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Fuse Holder, Drawer | Connector Type | Filter Type | Voltage Rating - Appliance Inlet | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination | Panel Thickness | Panel Thickness | Material Flammability Rating | Connector Style | Accomodates a Fuse | Current Rating - Appliance Inlet | Mounting Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. GSF1.1202.01 | Fuse Holder | Receptacle, Male Blades - Module | Unfiltered - Commercial | 250 VAC | CCC, CSA, ENEC, UL | 30.3 mm | 22.3 mm | Solder | 0.236 in | 6 mm | UL94 V-0 | IEC 320-C14 | 10 A | Panel Mount, Snap-In, Through Hole, Right Angle | IP40 | |
SCHURTER Inc. GSF1.1202.41 | Fuse Holder | Receptacle, Male Blades - Module | Unfiltered - Commercial | 250 VAC | CCC, CSA, ENEC, UL | Solder | 0.079 in | 2 mm | UL94 V-0 | IEC 320-C14 | 10 A | Panel Mount, Snap-In, Through Hole, Right Angle | IP40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 3.99 | |
Description
General part information
GSF1.1202 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
