AISM-1008-470J-T
ActiveAbracon LLC
IND 47UH 0.00252A 11100M
AISM-1008-470J-T
ActiveAbracon LLC
IND 47UH 0.00252A 11100M
Description
General part information
AISM-1008-470J-T

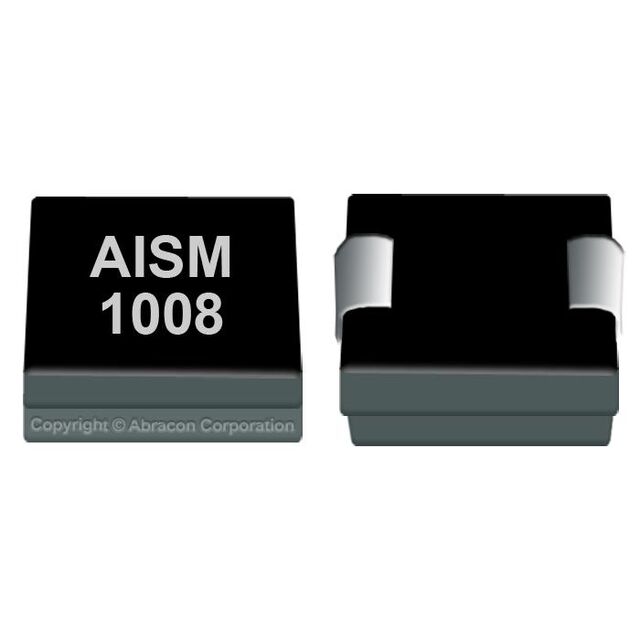

47 µH Unshielded Molded Inductor 80 mA 11.1Ohm Max 1008 (2520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AISM-1008-470J-T |
|---|---|
| Current Rating | 0.08 A |
| DC Resistance (DCR) (Max) | 11.1 Ohm |
| Frequency - Self Resonant | 17 MHz |
| Height - Seated (Max) | 0.075 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 100 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1008 (2520 Metric) |
| Package Name | 1008 |
| Q | 20 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Tolerance | 5 % |
| Type | Molded |
