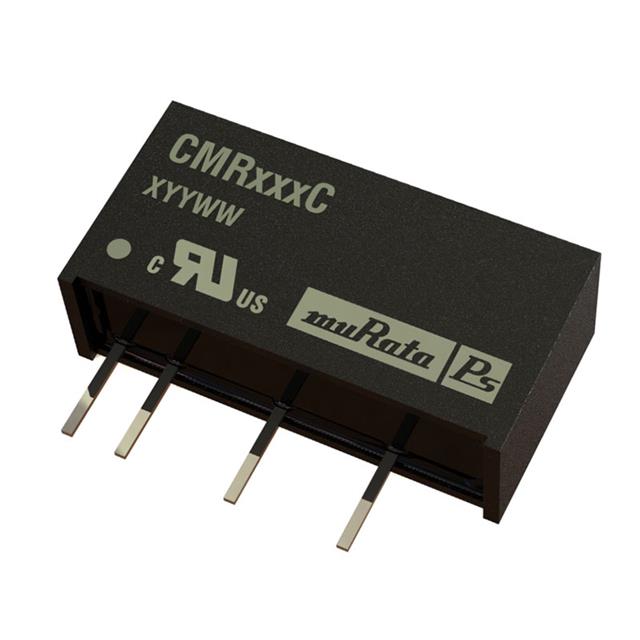

CMR100PC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 750 MW, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
CMR100PC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 750 MW, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CMR100PC | CMR1 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 150 mA | 150 mA |
| Efficiency | 75.5 % | 69 - 75.5 % |
| Features | SCP | SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads | 7-SIP Module, 4 Leads |
| Power (Watts) | 0.75 W | 0.75 W |
| Size / Dimension [x] | 19.5 mm | 19.5 mm |
| Size / Dimension [x] | 0.77 " | 0.77 " |
| Size / Dimension [y] | 6 mm | 6 mm |
| Size / Dimension [y] | 0.24 in | 0.24 in |
| Size / Dimension [z] | 0.39 in | 0.39 in |
| Size / Dimension [z] | 10 mm | 10 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 3000 V | 1000 - 3000 V |
| Voltage - Output 1 | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CMR1 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 750 MW, 1 OUTPUT, 5 V
| Part | Features | Voltage - Isolation | Efficiency | Type | Mounting Type | Number of Outputs | Power (Watts) | Voltage - Output 1 | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. CMR100C | |||||||||||||||||||||
Murata Power Solutions Inc. CMR100PC | SCP | 3000 V | 75.5 % | Isolated Module | Through Hole | 1 | 0.75 W | 5 V | ITE (Commercial) | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 5.5 V | 85 °C | -40 °C | 7-SIP Module, 4 Leads | 150 mA | 4.5 V |
Murata Power Solutions Inc. CMR100C | |||||||||||||||||||||
Murata Power Solutions Inc. CMR100PC | |||||||||||||||||||||
Murata Power Solutions Inc. CMR100C | 1000 V | 69 % | Isolated Module | Through Hole | 1 | 0.75 W | 5 V | ITE (Commercial) | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 5.5 V | 85 °C | -40 °C | 7-SIP Module, 4 Leads | 150 mA | 4.5 V |
Description
General part information
CMR1 Series
Isolated Module DC DC Converter 1 Output 5V 150mA 4.5V - 5.5V Input
