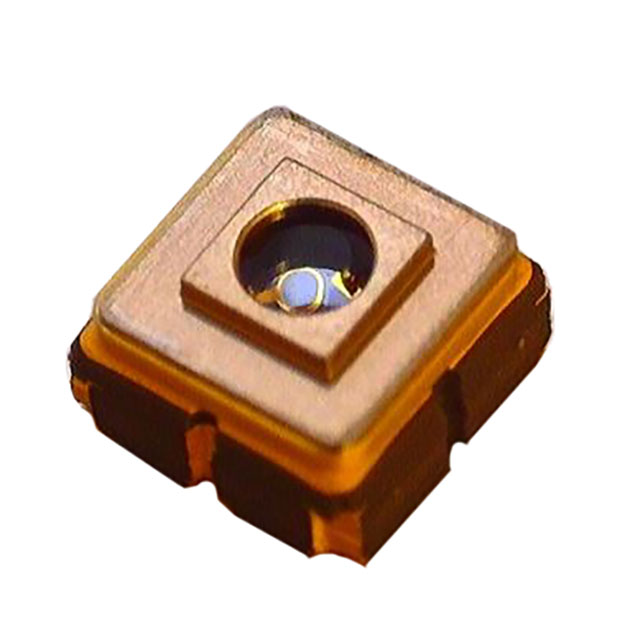

MTSM1346SMF1-030
ActiveMarktech Optoelectronics
PHOTODIODES 1700NM INGAAS PIN PD 0.3 AA 3MMX3MM SMD FLAT LENS
MTSM1346SMF1-030
ActiveMarktech Optoelectronics
PHOTODIODES 1700NM INGAAS PIN PD 0.3 AA 3MMX3MM SMD FLAT LENS
Description
General part information
MTSM1346SMF1-030
Photodiode 1300nm 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | MTSM1346SMF1-030 |
|---|---|
| Active Area | 0.31 mm² |
| Current - Dark (Typ) | 16 nA |
| Diode Type | Pin |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 6-SMD |
| Responsivity | 0.74 A/W |
| Spectral Range (Maximum) | 1750 nm |
| Spectral Range (Minimum) | 600 nm |
| Voltage - DC Reverse (Vr) (Max) | 3 V |
| Wavelength | 1300 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
