1002-7571-003

Active

Radiall USA, Inc.

SMC F STR NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F STR NA CR 2.6/50S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

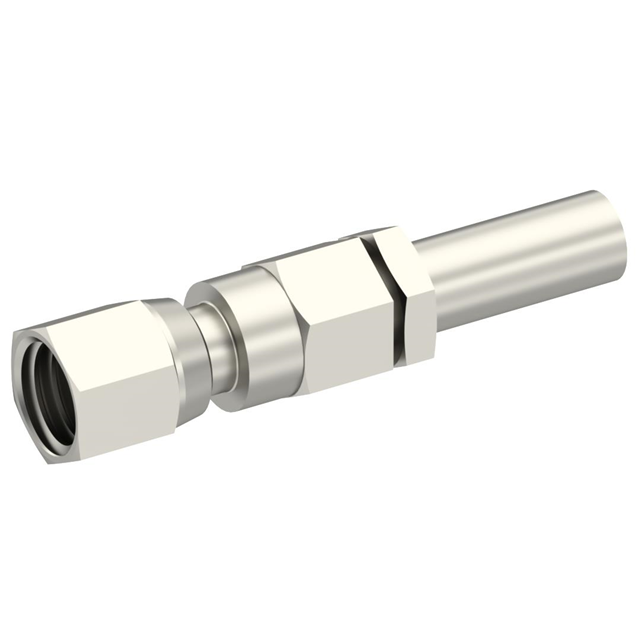

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1002-7571-003	1002-7571 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	179, RG-174, 316	RG-178, 179, RG-174, 316
Cable Group	-	196
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	SMC	SMC
Connector Type	Plug, Female Socket	Plug, Female Socket
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.25 dB	0.25 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	335 V	250 - 335 VDC

SMC / STRAIGHT PLUG FEMALE CRIMP

Part	Contact Termination	Insertion Loss	Housing Color	Connector Style	Body Material	Mounting Type	Frequency - Max [Max]	Center Contact Material	Connector Type	Number of Ports	Cable Group	Cable Group	Center Contact Plating	Mating Cycles	Voltage Rating	Impedance	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material
Radiall USA, Inc. 1002-7571-002	Crimp	0.25 dB	Silver	SMC	Brass	Free Hanging (In-Line)	10 GHz	Beryllium Copper	Female Socket, Plug	1	196	RG-178	Gold	500	250 VDC	50 Ohms	Crimp	Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. 1002-7571-019	Crimp	0.25 dB	Silver	SMC	Brass	Free Hanging (In-Line)	10 GHz	Beryllium Copper	Female Socket, Plug	1		179, 316, RG-174	Gold	500	335 V	50 Ohms	Crimp	Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. 1002-7571-003	Crimp	0.25 dB	Silver	SMC	Brass	Free Hanging (In-Line)	10 GHz	Brass	Female Socket, Plug	1		179, 316, RG-174	Gold	500	335 V	50 Ohms	Crimp	Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)
