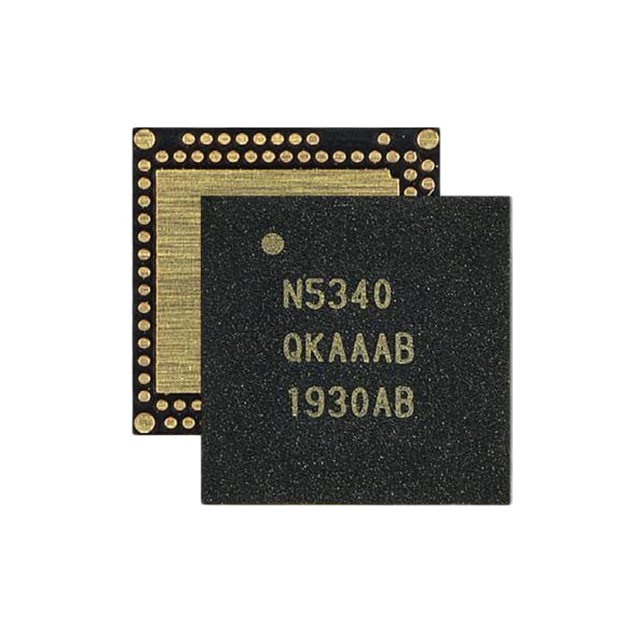

NRF5340-QKAA-R
ActiveNordic Semiconductor ASA
IC RF TXRX+MCU 802.15.4 94QFN
Deep-Dive with AI
Search across all available documentation for this part.
NRF5340-QKAA-R
ActiveNordic Semiconductor ASA
IC RF TXRX+MCU 802.15.4 94QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NRF5340-QKAA-R |
|---|---|
| Current - Receiving [Max] | 7 mA |
| Current - Receiving [Min] | 2.6 mA |
| Current - Transmitting | 3.2 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 48 |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 94-VFQFN Dual Rows, Exposed Pad |
| Power - Output | 3 dBm |
| Protocol | Bluetooth v5.1, Thread, Zigbee® |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -97.5 dBm |
| Serial Interfaces | PWM, I2S, SPI, USB, ADC, UART |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.68 | |
| 100 | $ 6.54 | |||
| 500 | $ 5.69 | |||
| 1000 | $ 5.21 | |||
| Digi-Reel® | 1 | $ 7.68 | ||
| 100 | $ 6.54 | |||
| 500 | $ 5.69 | |||
| 1000 | $ 5.21 | |||
| Tape & Reel (TR) | 3000 | $ 5.21 | ||
Description
General part information
NRF5340 Series
IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.1, Thread, Zigbee® 2.4GHz 94-VFQFN Dual Rows, Exposed Pad
