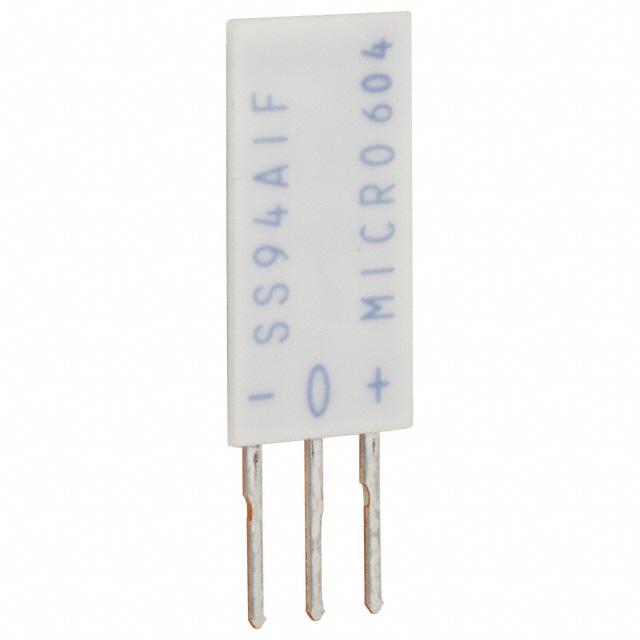

SS94A1
ActiveHoneywell Sensing and Productivity Solutions
HALL EFFECT SENSOR, SIP, 3 PINS, 6.6 VDC, 12.6 VDC, -40 °C
SS94A1
ActiveHoneywell Sensing and Productivity Solutions
HALL EFFECT SENSOR, SIP, 3 PINS, 6.6 VDC, 12.6 VDC, -40 °C
Description
General part information
SS94A1
Hall Effect Sensor Single Axis Ceramic SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | SS94A1 |
|---|---|
| Axis | Single |
| Current - Output (Max) | 1 mA |
| Current - Supply (Max) | 30 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | 3-SIP |
| Package Name | Ceramic SIP |
| Sensing Range (Max) | 50 mT |
| Sensing Range (Min) | -50 mT |
| Technology | Hall Effect |
| Voltage - Supply (Maximum) | 12.6 V |
| Voltage - Supply (Minimum) | 6.6 V |
