5151105F
ActiveDIALIGHT

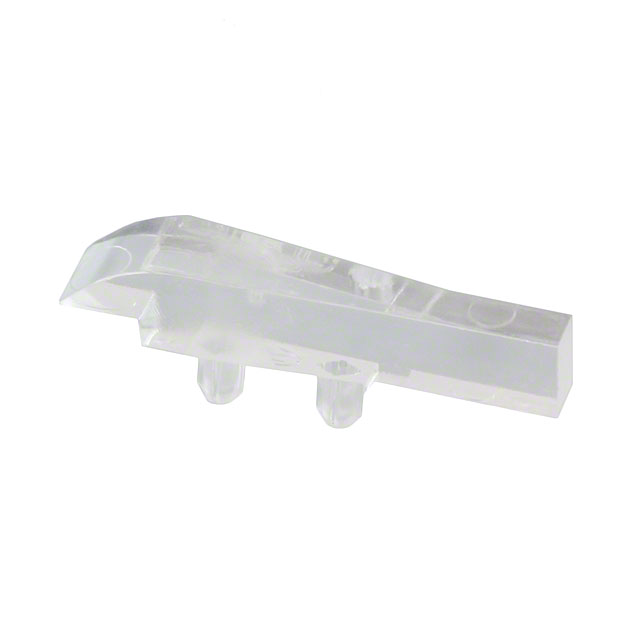

LIGHT PIPE 1 ELEMENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5151105F
ActiveDIALIGHT
LIGHT PIPE 1 ELEMENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5151105F | 5151105 Series |
|---|---|---|
| Color | Clear | Clear |
| Configuration | Single | Single |
| Lens Size [x] | 1.9 mm | 1.9 mm |
| Lens Size [y] | 3.1 mm | 3.1 mm |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Mounting Type | Board Mount, Right Angle, Press Fit | Board Mount, Right Angle, Press Fit |
| Type | Rigid | Rigid |
5151105 Series
LIGHT PIPE 1 ELEMENT DIFF 2:1
| Part | Color | Type | Configuration | Lens Size [x] | Lens Size [y] | Mounting Type | Lens Style |
|---|---|---|---|---|---|---|---|
DIALIGHT 5151105801F | Clear | Rigid | |||||
DIALIGHT 5151105F | Clear | Rigid | Single | 1.9 mm | 3.1 mm | Board Mount, Press Fit, Right Angle | Rectangle with Flat Top |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.42 | |
| 10 | $ 0.90 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.50 | |||
| 2000 | $ 0.48 | |||
| 5000 | $ 0.47 | |||
| 10000 | $ 0.46 | |||
Description
General part information
5151105 Series
Light Pipe Single Clear Rigid Board Mount, Press Fit, Right Angle
