430165-507

Active

Laird Thermal Systems, Inc.

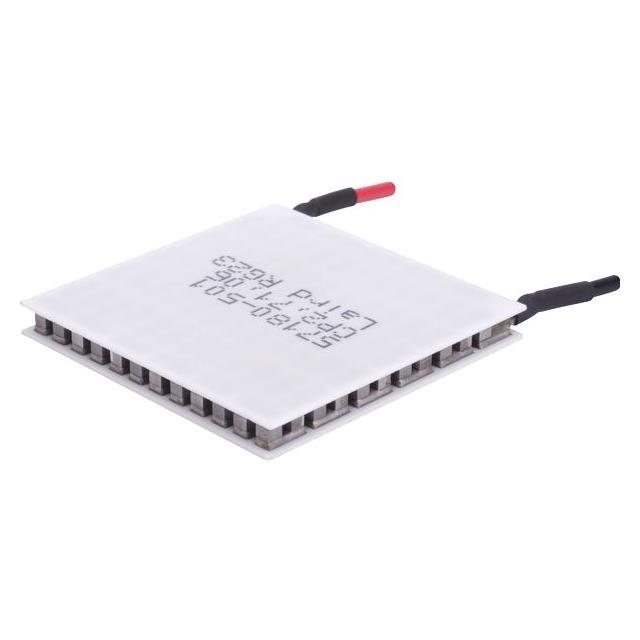

PELTIER CP2,71,06,L1,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP2,71,06,L1,RT,W4.5

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	430165-507	430165 Series

Current - Max [Max]	14.3 A	14.3 A
Delta Tmax @ Th	67 °C	67 °C
Features	Sealed - Silicone RTV, Lead Wires	Sealed - Silicone RTV, Lead Wires, Sealed - Epoxy
Height [z]	4.57 mm	4.57 mm
Number of Stages	1	1
Operating Temperature	80 °C	80 °C
Qmax @ Th	68.4 W	68.4 W
Resistance	530 mOhms	530 mOhms
Size / Dimension [x]	43.94 mm	43.9 - 43.94 mm
Size / Dimension [y]	43.94 mm	43.9 - 43.94 mm
Voltage - Max [Max]	8.1 V	8.1 V

PELTIER CP2,71,06,L1,RT,W4.5

Part	Resistance	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Height [z]	Number of Stages	Delta Tmax @ Th	Current - Max [Max]	Features	Voltage - Max [Max]	Qmax @ Th
Laird Thermal Systems, Inc. 430165-507	530 mOhms	43.94 mm	43.94 mm	80 °C	4.57 mm	1	67 °C	14.3 A	Lead Wires, Sealed - Silicone RTV	8.1 V	68.4 W
Laird Thermal Systems, Inc. 430165-509	530 mOhms	43.9 mm	43.9 mm	80 °C	4.57 mm	1	67 °C	14.3 A	Lead Wires, Sealed - Epoxy	8.1 V	68.4 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 36.02
