794621-2
ObsoleteTE Connectivity AMP Connectors

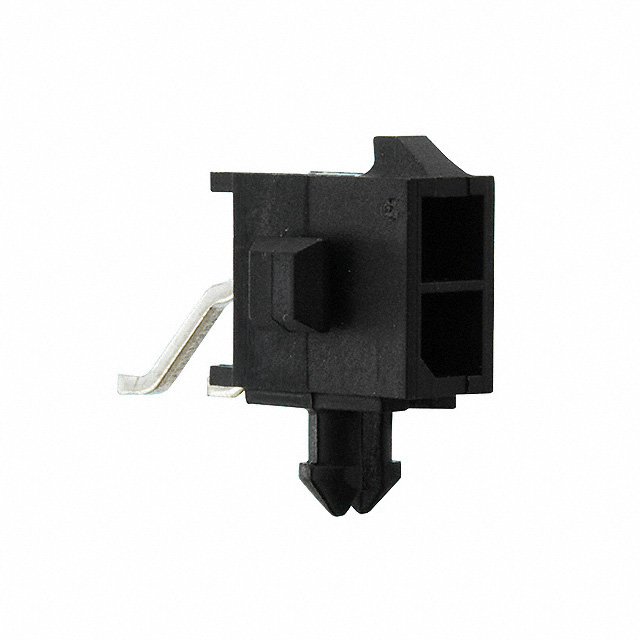

CONN HEADER SMD R/A 2POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794621-2
ObsoleteTE Connectivity AMP Connectors
CONN HEADER SMD R/A 2POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794621-2 | 794621 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Positions | 2 | 2 - 10 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | - | 0.118 in |
| Pitch - Mating | - | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794621 Series
CONN HEADER SMD R/A 10POS 3MM
| Part | Material Flammability Rating | Insulation Material | Current Rating (Amps) | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Termination | Row Spacing - Mating | Row Spacing - Mating | Shrouding | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Number of Positions | Number of Positions Loaded | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Material | Number of Rows | Contact Finish - Mating | Connector Type | Style | Contact Finish - Post | Voltage Rating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794621-0 | UL94 V-0 | Nylon, Polyamide (PA) | Varies by Wire Gauge | 7.37 mm | 0.29 in | 0.118 in | 3 mm | Solder | 3 mm | 0.118 in | Shrouded - 4 Wall | General Purpose | 2.54 çm | 100 çin | Square | 10 | All | Surface Mount, Right Angle | -40 °C | 105 ░C | Locking Ramp | Brass | 2 | Tin-Lead | Header | Board to Cable/Wire | Tin-Lead | 250 VDC | Black | 2.54 µm | 100 µin | Male Pin |
TE Connectivity AMP Connectors 794621-2 | UL94 V-0 | Nylon, Polyamide (PA) | Varies by Wire Gauge | 7.37 mm | 0.29 in | Solder | 3 mm | 0.118 in | Shrouded - 4 Wall | General Purpose | 2.54 çm | 100 çin | Square | 2 | All | Surface Mount, Right Angle | -40 °C | 105 ░C | Locking Ramp | Brass | 2 | Tin-Lead | Header | Board to Cable/Wire | Tin-Lead | 250 VDC | Black | 2.54 µm | 100 µin | Male Pin | ||
TE Connectivity AMP Connectors 4-794621-0 | UL94 V-0 | Nylon, Polyamide (PA) | Varies by Wire Gauge | 7.37 mm | 0.29 in | 0.118 in | 3 mm | Solder | 3 mm | 0.118 in | Shrouded - 4 Wall | General Purpose | 2.54 çm | 100 çin | Square | 10 | All | Surface Mount, Right Angle | -40 °C | 105 ░C | Locking Ramp | Brass | 2 | Header | Board to Cable/Wire | Tin | 250 VDC | Black | 2.54 µm | 100 µin | Male Pin | |
TE Connectivity AMP Connectors 3-794621-2 | UL94 V-0 | Nylon, Polyamide (PA) | Varies by Wire Gauge | 7.37 mm | 0.29 in | Solder | 3 mm | 0.118 in | Shrouded - 4 Wall | General Purpose | 2.54 çm | 100 çin | Square | 2 | All | Surface Mount, Right Angle | -40 °C | 105 ░C | Locking Ramp | Brass | 2 | Header | Board to Cable/Wire | Tin | 250 VDC | Black | 2.54 µm | 100 µin | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794621 Series
Connector Header Surface Mount, Right Angle 2 position
