13280-20SG-331

Active

Conxall/Switchcraft

CONN PLUG FMALE 20POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 20POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG FMALE 20POS GOLD CRIMP

Part	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Voltage Rating	Contact Finish - Mating	Connector Type	Shielding	Number of Positions	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Termination	Features	Orientation	Fastening Type	Contact Material	Color	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Conxall/Switchcraft 13280-20SG-331	9.65 mm	0.31 in, 0.38 in	7.87 mm	Weathertight	600 V	Gold	Female Sockets, Plug	Unshielded	20	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Crimp	Backshell, Cable Clamp	Keyed	Bayonet Lock	Brass	Black	Free Hanging (In-Line)
Conxall/Switchcraft 13280-20SG-326				Weathertight	600 V	Gold	Female Sockets, Plug	Unshielded	20	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Crimp	Backshell, Cable Clamp	Keyed	Bayonet Lock	Brass	Black	Free Hanging (In-Line)	0.26 in	7.62 mm	0.3 in	6.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

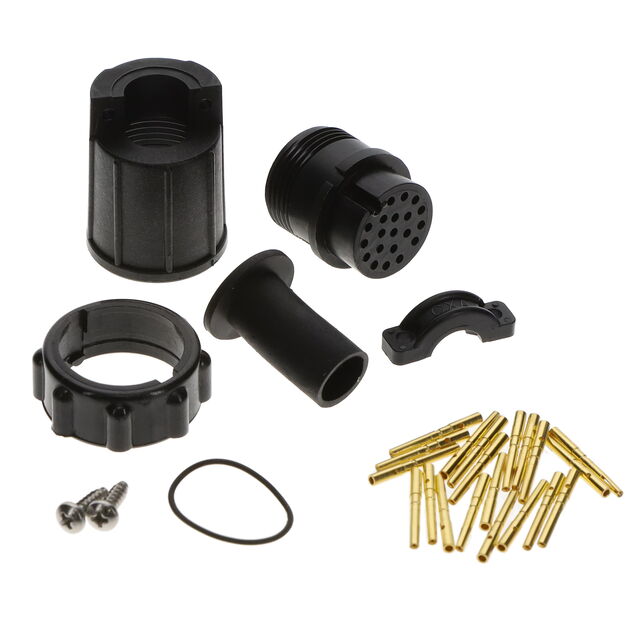

20 Position Circular Connector Plug, Female Sockets Crimp
