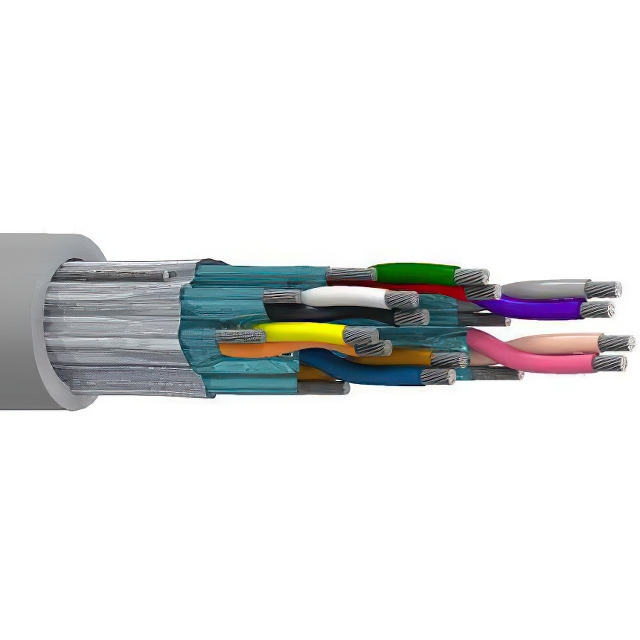

9774MN 008100

Active

Belden Inc.

MULTI-PAIR 12CON 18AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12CON 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	9774MN 008100

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.439 in
Jacket (Insulation) Diameter [diameter]	11.15 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.031 in
Jacket (Insulation) Thickness	0.787 mm
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Number of Conductors	Shield Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Wire Gauge	Jacket (Insulation) Material	Usage	Shield Coverage	Features	Shield Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Voltage	Length [x]	Length [x]
Belden Inc. 9774MN 0081000	12	Foil	Polypropylene (PP)	41 strands	34 AWG	Copper Tinned	UL Style 2937	-20 C	80 C	Gray	18 AWG	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	100 %	Drain Wire	Aluminum	Multi-Pair	0.439 in	11.15 mm	0.406 mm	0.016 in	1000 ft	304.8 m	300 V
Belden Inc. 9774MN 008100	12	Foil	Polypropylene (PP)	41 strands	34 AWG	Copper Tinned		-20 C	80 C	Gray	18 AWG	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	100 %	Drain Wire	Aluminum	Multi-Pair	0.439 in	11.15 mm	0.787 mm	0.031 in				30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 10.64

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Gray 18 AWG Foil 100.0' (30.5m)
