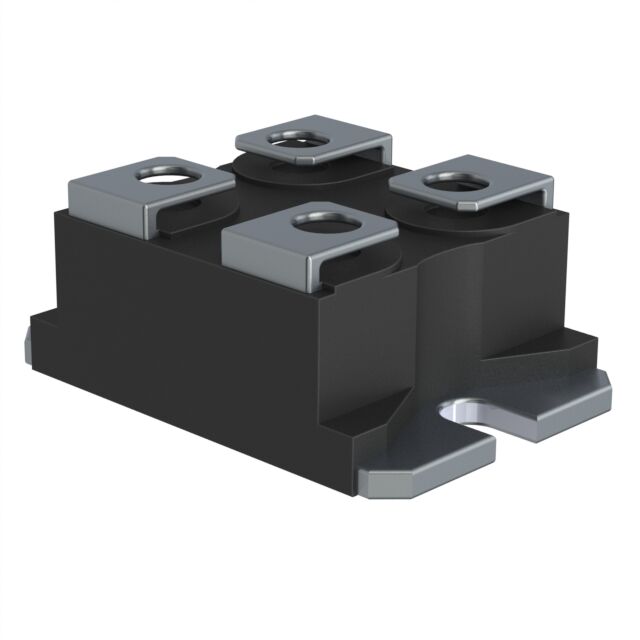

GSXD160A020S1-D3
ActiveSemiQ
DIODE MOD SCHOT 200V 160A SOT227
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSXD160A020S1-D3
ActiveSemiQ
DIODE MOD SCHOT 200V 160A SOT227
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GSXD160A020S1-D3 | GSXD160 Series |
|---|---|---|
| Current - Average Rectified (Io) (per Diode) | 160 A | 160 A |
| Current - Reverse Leakage @ Vr | 3 mA | 1 - 3 mA |
| Diode Configuration | 2 Independent | 2 Independent |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature - Junction [Max] | 150 °C | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C | -40 °C |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | SOT-227 | SOT-227 |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V | 100 - 200 V |
| Voltage - Forward (Vf) (Max) @ If | 920 mV | 840 - 920 mV |
GSXD160 Series
DIODE MOD SCHOT 100V 160A SOT227
| Part | Speed | Mounting Type | Voltage - Forward (Vf) (Max) @ If | Technology | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Average Rectified (Io) (per Diode) | Supplier Device Package | Diode Configuration | Current - Reverse Leakage @ Vr | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
SemiQ GSXD160A010S1-D3 | 200 mA, 500 ns | Chassis Mount | 840 mV | Schottky | 150 °C | -40 °C | 100 V | 160 A | SOT-227 | 2 Independent | 1 mA | SOT-227-4, miniBLOC |
SemiQ GSXD160A018S1-D3 | 200 mA, 500 ns | Chassis Mount | 920 mV | Schottky | 150 °C | -40 °C | 180 V | 160 A | SOT-227 | 2 Independent | 3 mA | SOT-227-4, miniBLOC |
SemiQ GSXD160A020S1-D3 | 200 mA, 500 ns | Chassis Mount | 920 mV | Schottky | 150 °C | -40 °C | 200 V | 160 A | SOT-227 | 2 Independent | 3 mA | SOT-227-4, miniBLOC |
SemiQ GSXD160A012S1-D3 | 200 mA, 500 ns | Chassis Mount | 880 mV | Schottky | 150 °C | -40 °C | 120 V | 160 A | SOT-227 | 2 Independent | 3 mA | SOT-227-4, miniBLOC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 65 | $ 30.78 | |
Description
General part information
GSXD160 Series
Diode Array 2 Independent 200 V 160A Chassis Mount SOT-227-4, miniBLOC
