415-0527-006
ActiveCinch Connectivity Solutions Johnson
CABLE ASSY, SMPM STR FEMALE TO S
415-0527-006
ActiveCinch Connectivity Solutions Johnson
CABLE ASSY, SMPM STR FEMALE TO S
Description
General part information
415-0527-006

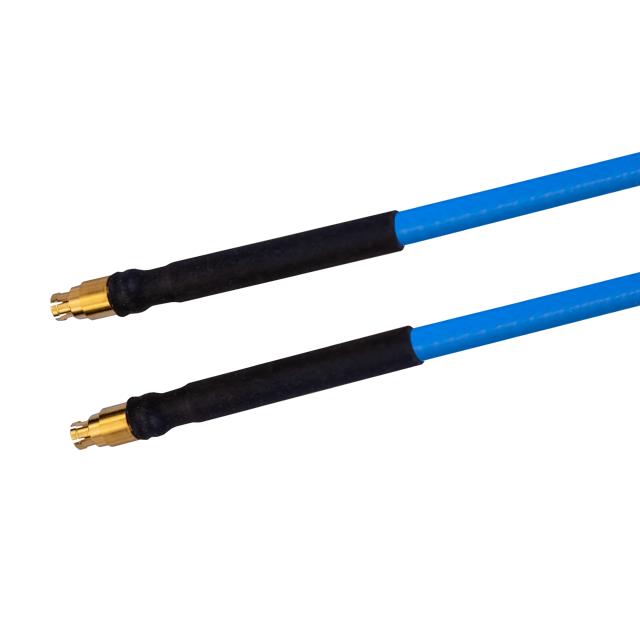

Cable Assembly Coaxial SMPM to SMPM 0.086" Flexible Cable 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 415-0527-006 |
|---|---|
| 1st Connector | SMPM Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMPM Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.086 " |
| Cable Outer Diameter | 0.086 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.086 |
| Color | Blue |
| Frequency - Max | 40 Gbps |
| Length | 0.5 ft |
| Style | SMPM |
