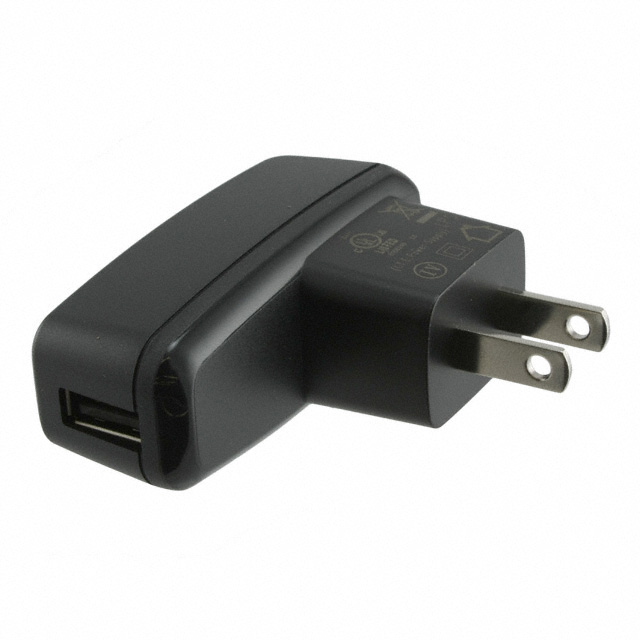

DCH3-050US-0004
ObsoleteARTESYN / Advanced Energy
PLUG-IN ADAPTER SINGLE-OUT 5V 0.55A 3W
DCH3-050US-0004
ObsoleteARTESYN / Advanced Energy
PLUG-IN ADAPTER SINGLE-OUT 5V 0.55A 3W
Description
General part information
DCH3-050US-0004
5V 2.8 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DCH3-050US-0004 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 550 mA |
| Efficiency | Level IV |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | USB A Receptacle |
| Power (Watts) | 2.8 W |
| Region Utilized | North America |
| Size / Dimension Height | 1.79 in |
| Size / Dimension Length | 2.28 in |
| Size / Dimension Width | 1.03 in |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 5 VDC |
| Weight | 0.144 lb |
