Description
General part information

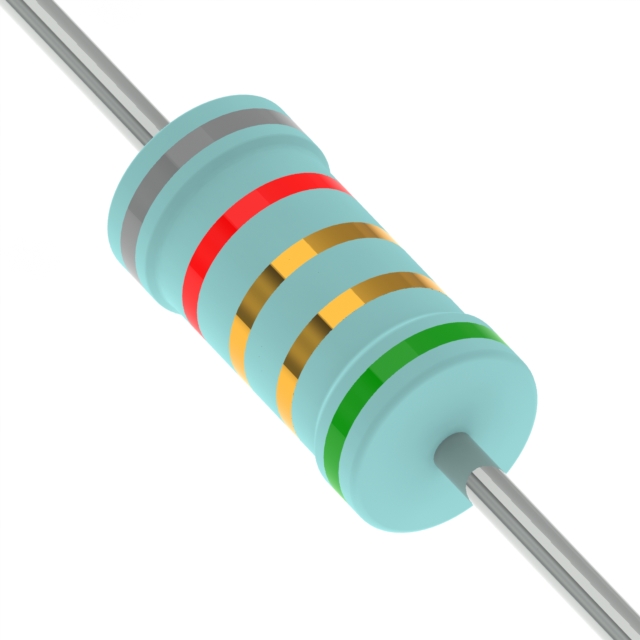

PNS230JT-73-8R2
8.2 Ohms ±5% 2.3W Through Hole Resistor Axial Flame Proof, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | PNS230JT-73-8R2 |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 2.3 W |
| Resistance | 8.2 Ohm |
| Size / Dimension Diameter | 0.177 in |
| Size / Dimension Length | 0.571 in |
| Temperature Coefficient (Highest) | 170 ppm/°C |
| Temperature Coefficient (Lowest) | -70 ppm/°C |
| Tolerance | 5 % |
