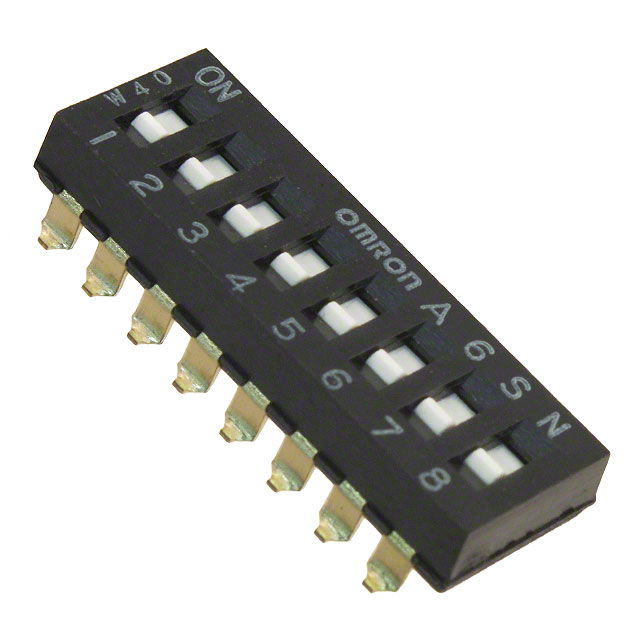

A6SN-8101-P

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6SN-8101-P

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6SN-8101-P	A6SN Series

Actuator Level	Flush, Recessed	Raised, Flush, Recessed
Actuator Type	Slide (Standard)	Slide (Standard)
Circuit	SPST	SPST
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Features	-	Tape Seal
Height Above Board	0.175 in	0.175 in
Height Above Board	4.45 mm	4.45 - 5.45 mm
Height Above Board	-	0.214 in
Length	0.876 "	0.376 - 0.876 in
Length	22.26 mm	9.55 - 22.26 mm
Length	-	4.48 - 27.34 mm
Length	-	0.176 - 1.076 "
Mounting Type	Surface Mount	Surface Mount
Number of Positions	8	1 - 10
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	Gull Wing	Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	True	True

A6SN Series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Electrical Life	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Height Above Board [z]	Height Above Board	Circuit	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Actuator Type	Termination Style	Current Rating (Amps)	Mounting Type	Height Above Board	Number of Positions	Length	Length	Features
Omron Electronics Inc-EMC Div A6SN-5104-P	1000 Cycles	Raised	-30 ░C	85 °C	24 VDC	0.214 in	5.45 mm	SPST	0.1 in	Full	2.54 mm	14.63 mm	0.576 "	Slide (Standard)	Gull Wing	25 mA	Surface Mount
Omron Electronics Inc-EMC Div A6SN-5101-R100	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm	14.63 mm	0.576 "	Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in
Omron Electronics Inc-EMC Div A6SN-4101	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	4	0.476 in	12.09 mm
Omron Electronics Inc-EMC Div A6SN-3101	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in		0.376 "	9.55 mm
Omron Electronics Inc-EMC Div A6SN-3101-P	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in		0.376 "	9.55 mm
Omron Electronics Inc-EMC Div A6SN-2101	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm	7 mm	0.276 in	Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	2
Omron Electronics Inc-EMC Div A6SN-8104	1000 Cycles	Raised	-30 ░C	85 °C	24 VDC	0.214 in	5.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount		8	0.876 "	22.26 mm
Omron Electronics Inc-EMC Div A6SN-0101-P	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm	27.34 mm	1.076 in	Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	10
Omron Electronics Inc-EMC Div A6SN-4101-P	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm			Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	4	0.476 in	12.09 mm
Omron Electronics Inc-EMC Div A6SN-2102-P	1000 Cycles	Flush, Recessed	-30 ░C	85 °C	24 VDC		4.45 mm	SPST	0.1 in	Full	2.54 mm	7 mm	0.276 in	Slide (Standard)	Gull Wing	25 mA	Surface Mount	0.175 in	2			Tape Seal
