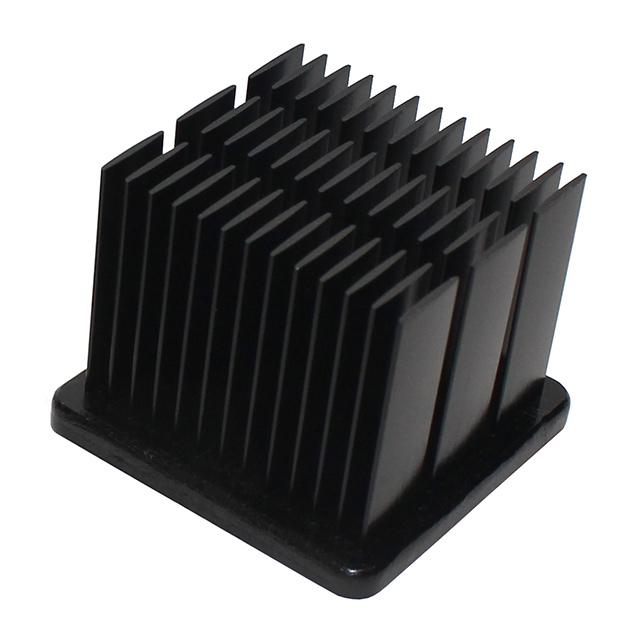

AER38-38-23CB/A01
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK FORGED BLK ANO TOP MNT
Deep-Dive with AI
Search across all available documentation for this part.
AER38-38-23CB/A01
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK FORGED BLK ANO TOP MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AER38-38-23CB/A01 |
|---|---|
| Attachment Method | Thermal Tape, Adhesive (Included) |
| Fin Height | 22.61 mm |
| Fin Height | 0.89 in |
| Length | 1.461 in |
| Length | 37.1 mm |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | ASIC, BGA, LGA, CPU |
| Shape | Square, Fins |
| Shelf Life | 24 Months |
| Thermal Resistance @ Forced Air Flow | 2.12 °C/W, 200 LFM |
| Thermal Resistance @ Natural | 8.85 °C/W |
| Type | Top Mount |
| Width [x] | 37.1 mm |
| Width [x] | 1.461 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 300 | $ 6.32 | |
Description
General part information
AER38-38-23CB/A01
Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount
