966204-2000-AR-PR

Obsolete

3M (TC)

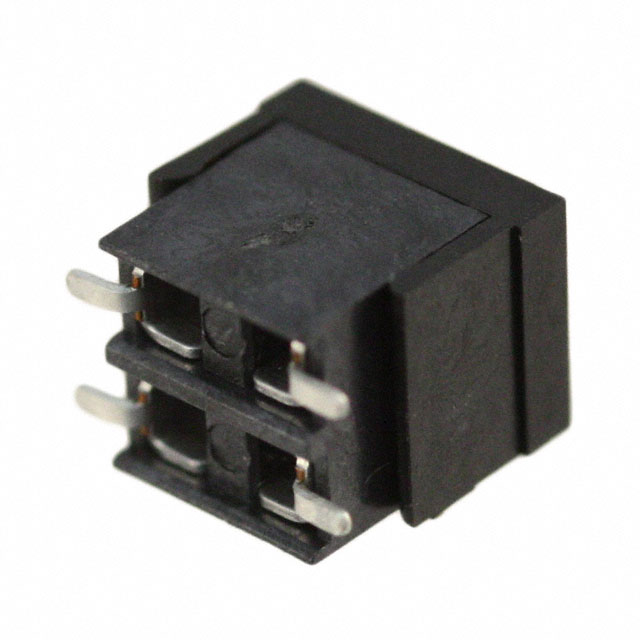

CONN RCPT 4POS 0.1 GOLD SMD

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT 4POS 0.1 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	966204-2000-AR-PR

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	1000 VDC

Part	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Type	Contact Material	Contact Shape	Voltage Rating	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Insulation Material	Number of Rows	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Termination	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions Loaded	Features
3M (TC) 966204-6702-AR	0.197 in	5 mm	-25 °C	105 ░C	4	Through Hole	Black	2.54 mm	0.1 in	Flash	Female Socket	Copper Alloy	Square	1000 VDC	2 A	UL94 V-0	Gold	Thermoplastic	2	Tin	0.118 in	3 mm	Solder	Push-Pull	1.02 Ám	40 Áin	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	All
3M (TC) 966204-2000-AR-PR	0.197 in	5 mm	-25 °C	105 ░C	4	Surface Mount	Black	2.54 mm	0.1 in	Flash	Female Socket	Copper Alloy	Square	1000 VDC	2 A	UL94 V-0	Gold	Thermoplastic	2	Tin			Solder	Push-Pull	1.02 Ám	40 Áin	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	All	Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold

Technical documentation and resources
