WKA500-17P
ActiveDinkle Corporation, USA
TERM BLK 17POS 5.00MM PID PLG
WKA500-17P
ActiveDinkle Corporation, USA
TERM BLK 17POS 5.00MM PID PLG
Description
General part information
WKA500-17P

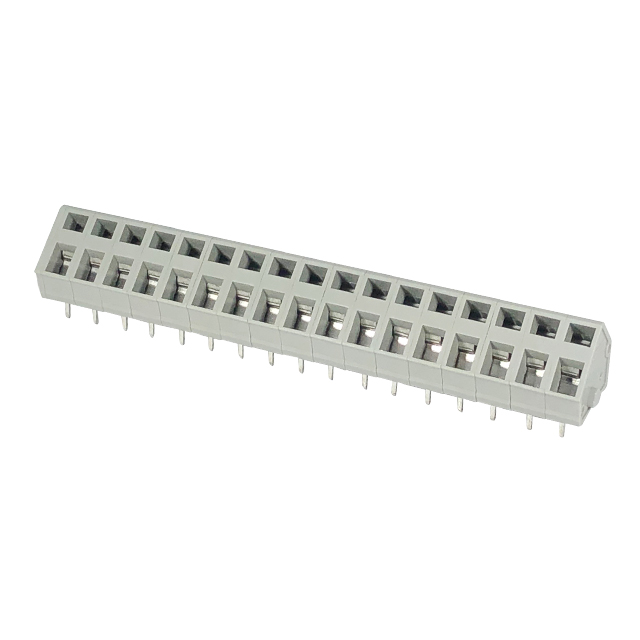

17 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | WKA500-17P |
|---|---|
| Color | Gray |
| Current | 15 A |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 17 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
