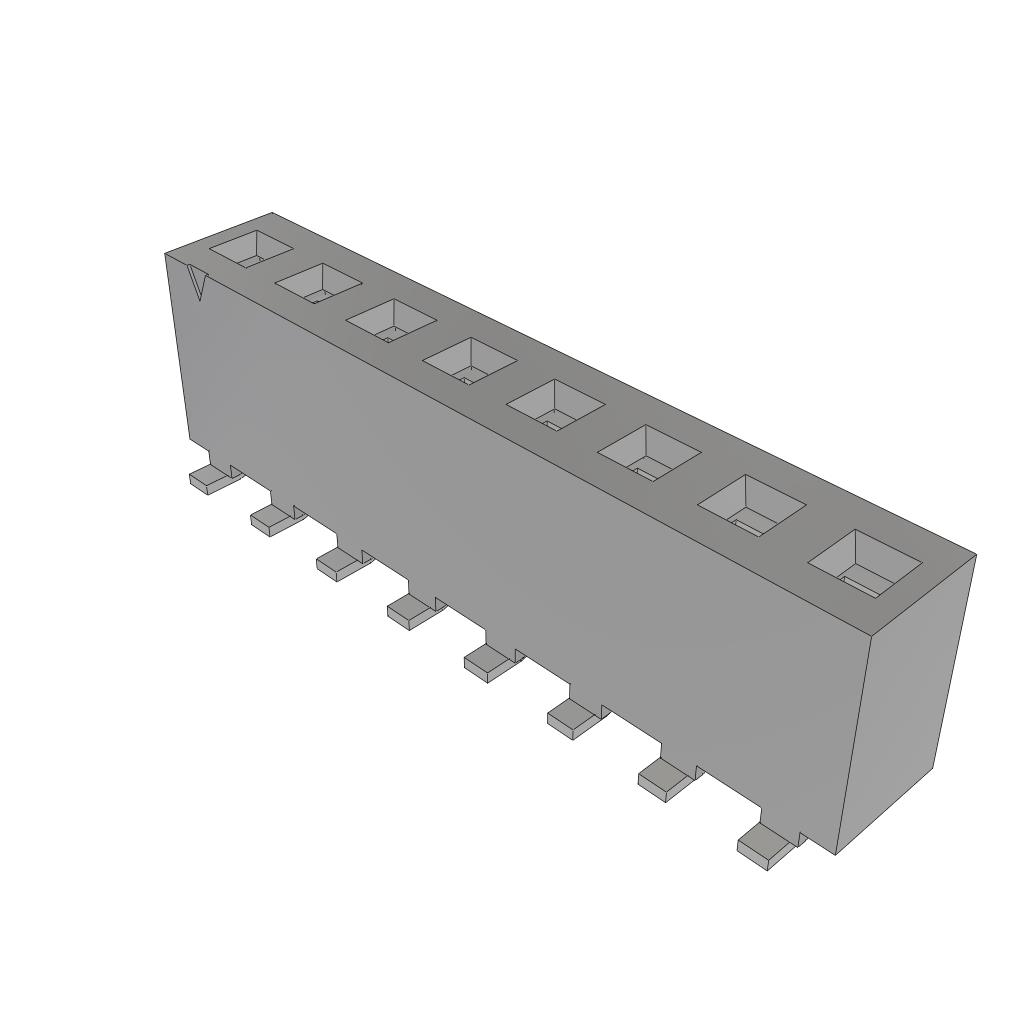

FHP-08-02-T-S-LC
ActiveSamtec Inc.
CONN RCPT 8POS 0.156 TIN SMD
Deep-Dive with AI
Search across all available documentation for this part.
FHP-08-02-T-S-LC
ActiveSamtec Inc.
CONN RCPT 8POS 0.156 TIN SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FHP-08-02-T-S-LC |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 9.35 mm |
| Insulation Height | 0.368 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 18 | $ 5.54 | |
Description
General part information
FHP-08 Series
8 Position Receptacle Connector 0.156" (3.96mm) Surface Mount Tin
