SSI-LXH9SRD-150

Active

Lumex Opto/Components Inc.

LED 5MM SUP RED 6"LDS REAR PNLMT

Deep-Dive with AI

Search across all available documentation for this part.

SSI-LXH9SRD-150

Active

Lumex Opto/Components Inc.

LED 5MM SUP RED 6"LDS REAR PNLMT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.22
		10	$ 0.77
		100	$ 0.57
		500	$ 0.55

Description

General part information

SSI-LXH9 Series

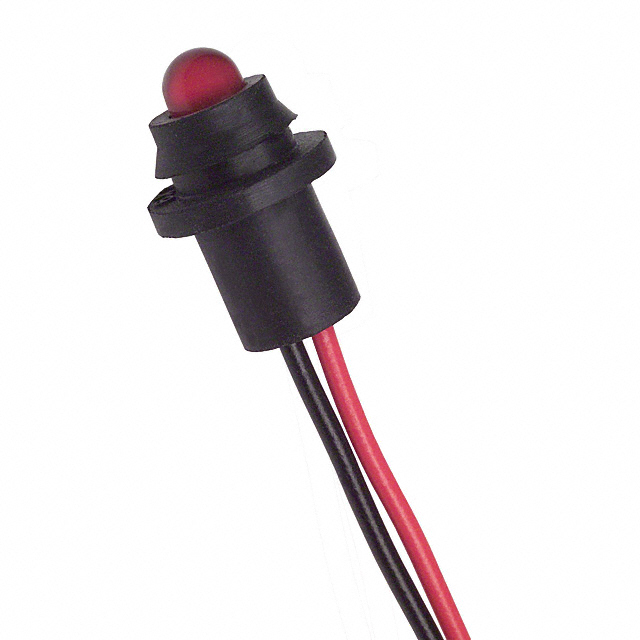

LED Panel Indicator Red Diffused 60° 1.7V 30mA Wire Leads - 6" (152.40mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSI-LXH9SRD-150	SSI-LXH9 Series

Current	30 mA	14 - 30 mA
Current	-	25 mA
Current	-	25 mA
Lamp Color	Red	Red, Green, Yellow
Lens Color	Red	Red, Green, White, Yellow
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	80 mcd	5 - 100 mcd
Panel Cutout Dimensions	0.33 in	0.33 in
Panel Cutout Dimensions	8.38 mm	8.38 mm
Panel Cutout Dimensions	-	0.33 in
Panel Cutout Dimensions	-	8.26 mm
Panel Cutout Shape	Round	Round
Ratings	-	DC
Termination Style	-	609.6 mm
Termination Style	-	24 in
Termination Style	-	Wire Leads
Type	LED	LED
Viewing Angle	60 °	60 °
Voltage	1.7 V	1.7 - 28 V
Wavelength - Peak	660 nm	565 - 700 nm

SSI-LXH9 Series

LED PANEL INDICATOR RED 2V

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Millicandela Rating	Lens Transparency	Viewing Angle	Wavelength - Peak	Lens Color	Panel Cutout Shape	Lens Size	Lens Size	Type	Lens Style	Lamp Color	Current	Termination Style	Termination Style	Termination Style	Ratings	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Current [custom]	Current [custom]
Lumex Opto/Components Inc. SSI-LXH9ID-150	0.33 in	8.38 mm	2 V	40 mcd	Diffused	60 °	635 nm	Red	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Red
Lumex Opto/Components Inc. SSI-LXH9GD28V-150	0.33 in	8.38 mm	28 V	20 mcd	Diffused	60 °	565 nm	Green	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Green	14 mA
Lumex Opto/Components Inc. SSI-LXH9SRD-610	0.33 in	8.38 mm	1.7 V	30 mcd	Diffused	60 °	660 nm	Red	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Red		609.6 mm	24 in	Wire Leads
Lumex Opto/Components Inc. SSI-LXH9GD-150	0.33 in	8.38 mm	2.2 V	30 mcd	Diffused	60 °	565 nm	Green	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Green	25 mA
Lumex Opto/Components Inc. SSI-LXH9SRD	0.33 in	8.38 mm	1.8 V	80 mcd	Diffused	60 °	660 nm	Red	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Red	30 mA
Lumex Opto/Components Inc. SSI-LXH9SID-150			2 V	100 mcd	Diffused	60 °	636 nm	Red	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Red	30 mA				DC	0.33 in	8.26 mm
Lumex Opto/Components Inc. SSI-LXH9HGW-150	0.33 in	8.38 mm	2 V, 2.2 V	5 mcd, 25 mcd	Diffused	60 °	565 nm, 700 nm	White	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Green, Red								25 mA	25 mA
Lumex Opto/Components Inc. SSI-LXH9SRD-150	0.33 in	8.38 mm	1.7 V	80 mcd	Diffused	60 °	660 nm	Red	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Red	30 mA
Lumex Opto/Components Inc. SSI-LXH9YD-150	0.33 in	8.38 mm	2.1 V	30 mcd	Diffused	60 °	585 nm	Yellow	Round	T-1 3/4	5 mm	LED	Round with Domed Top	Yellow	30 mA
