MN6-38RX-BOTTLE

Active

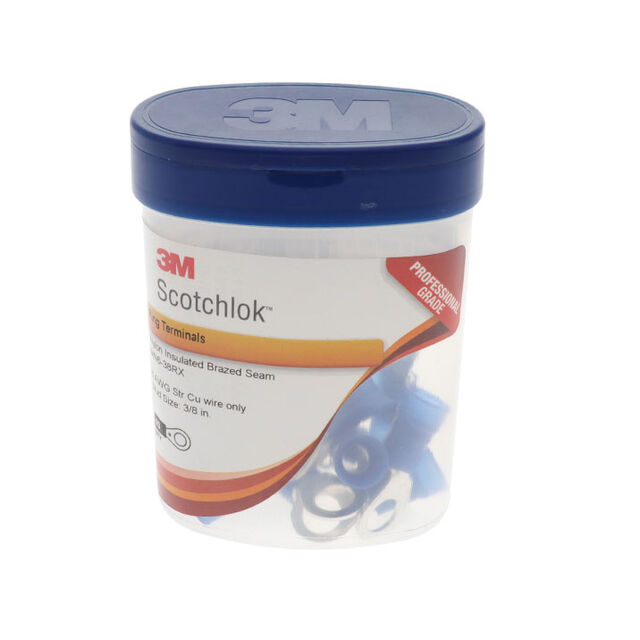

CONN RING CIRC 6AWG #3/8 10PC

Search across all available documentation for this part.

Active

CONN RING CIRC 6AWG #3/8 10PC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 3/8 Stud Circular 6 AWG Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MN6-38RX-BOTTLE	MN6 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated
Insulation Diameter [diameter]	11.18 mm	11.18 mm
Insulation Diameter [diameter]	0.44 in	0.44 in
Length - Overall [x]	32.26 mm	32.26 mm
Length - Overall [x]	1.27 in	1.27 in
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	3/8 Stud	3/8 Stud
Stud/Tab Size	-	0.25 Stud
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	50 mils	50 mils
Thickness	0.05 in	0.05 in
Width - Outer Edges	-	0.47 in
Width - Outer Edges	-	11.94 mm
Width - Outer Edges [x]	16 mm	16 mm
Width - Outer Edges [x]	0.63 in	0.63 in
Wire Gauge	6 AWG	6 AWG

CONN RING CIRC 6AWG #1/4 10PC

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Color	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Thickness	Thickness	Stud/Tab Size	Material - Insulation	Contact Finish	Features	Wire Gauge	Insulation	Termination	Mounting Type	Length - Overall [x]	Length - Overall [x]	Terminal Type	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]
3M MN6-14R/SX-BOTTLE	0.47 in	11.94 mm	Blue	Copper, ETP	11.18 mm	0.44 in	50 mils	0.05 in	0.25 Stud	Nylon, Polyamide (PA)	Tin	Brazed Seam	6 AWG	Insulated	Crimp	Free Hanging (In-Line)	32.26 mm	1.27 in	Circular
3M MN6-38RX-BOTTLE			Blue	Copper, ETP	11.18 mm	0.44 in	50 mils	0.05 in		Nylon, Polyamide (PA)	Tin	Brazed Seam	6 AWG	Insulated	Crimp	Free Hanging (In-Line)	32.26 mm	1.27 in	Circular	3/8 Stud	16 mm	0.63 in
