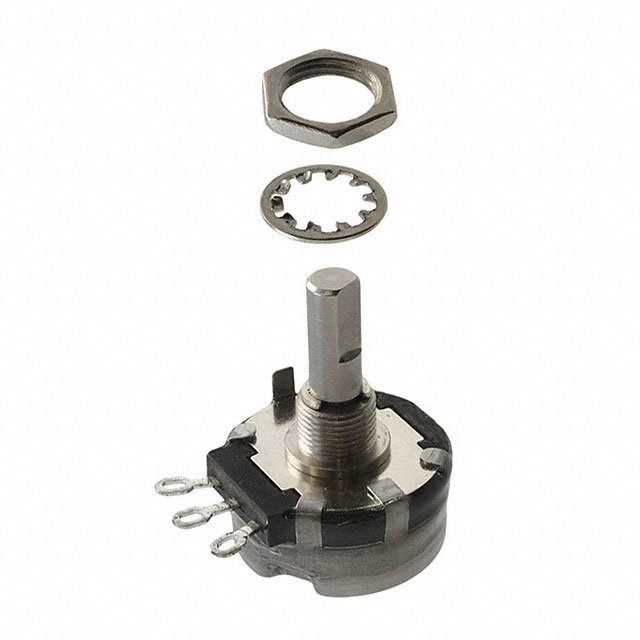

P270-SF21BR10K
ActiveTT Electronics/BI
POT 10K OHM 2W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P270-SF21BR10K
ActiveTT Electronics/BI
POT 10K OHM 2W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P270-SF21BR10K |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Actuator Length [z] | 22.23 mm |
| Actuator Length [z] | 0.875 in |
| Actuator Type | Flatted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Features | Sealed |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 2 W |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Rotation | 312 ° |
| Size - Body [diameter] | 26.67 mm |
| Size - Body [diameter] | 1.05 Dia |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 840 | $ 9.96 | |
Description
General part information
P270-SF21BR10K
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 2W Solder Lug
