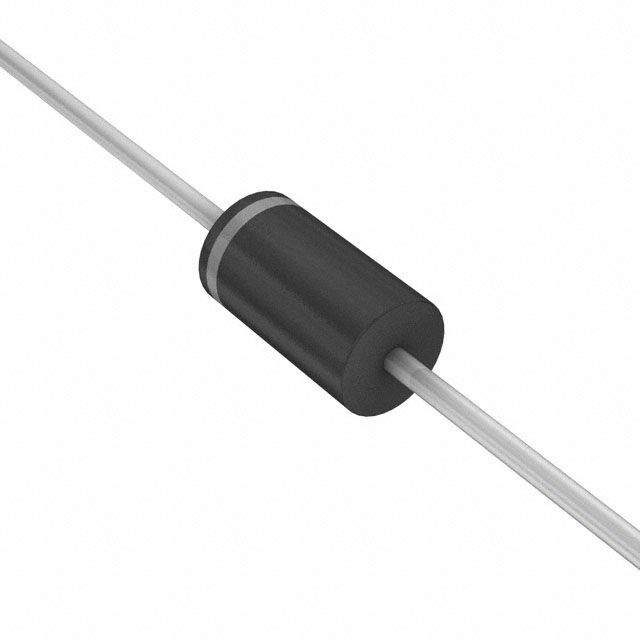

SB360E-G

Active

Comchip Technology

DIODE SCHOTTKY 60V 3A 2-PIN DO-201AD T/R

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 60V 3A 2-PIN DO-201AD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SB360E-G

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-201AD, Axial
Speed	200 mA, 500 ns
Supplier Device Package	DO-201AD
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	700 mV

DIODE SCHOTTKY 60V 3A 2-PIN DO-201AD T/R

Part	Mounting Type	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Voltage - Forward (Vf) (Max) @ If	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package
Comchip Technology SB360E-G	Through Hole	500 µA	3 A	200 mA, 500 ns	60 V	Schottky	700 mV	DO-201AD, Axial	150 °C	-65 C	DO-201AD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 60 V 3A Through Hole DO-201AD

Technical documentation and resources

No documents available
