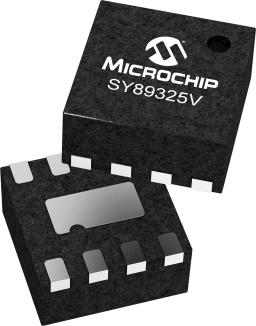

SY89325VMG-TR
ActiveTRANSLATOR, 2 INPUT, 700 PS, 3 V TO 5 V, 8 PINS, MLF-EP
Deep-Dive with AI
Search across all available documentation for this part.
SY89325VMG-TR
ActiveTRANSLATOR, 2 INPUT, 700 PS, 3 V TO 5 V, 8 PINS, MLF-EP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY89325VMG-TR | SY89325 Series |
|---|---|---|
| Channel Type | Unidirectional | Unidirectional |
| Channels per Circuit | 1 | 1 |
| Data Rate | 1.5 Gbps | 1.5 Gbps |
| Input Signal | PECL, LVPECL, CML | PECL, LVPECL, CML |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Signal | LVDS | LVDS |
| Output Type | Differential | Differential |
| Package / Case | 8-MLF®, 8-VFDFN Exposed Pad | 8-MLF®, 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-MLF® (2x2) | 8-MLF® (2x2) |
| Translator Type | Mixed Signal | Mixed Signal |
SY89325 Series
IC TRANSLTR UNIDIRECTIONAL 8MLF
| Part | Input Signal | Output Signal | Channels per Circuit | Output Type | Package / Case | Channel Type | Translator Type | Data Rate | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SY89325VMI-TR | CML, LVPECL, PECL | LVDS | 1 | Differential | 8-MLF®, 8-VFDFN Exposed Pad | Unidirectional | Mixed Signal | 1.5 Gbps | 85 °C | -40 °C | 8-MLF® (2x2) | Surface Mount | 1 |
Microchip Technology SY89325VMG-TR | CML, LVPECL, PECL | LVDS | 1 | Differential | 8-MLF®, 8-VFDFN Exposed Pad | Unidirectional | Mixed Signal | 1.5 Gbps | 85 °C | -40 °C | 8-MLF® (2x2) | Surface Mount | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.83 | |
| 25 | $ 3.18 | |||
| 100 | $ 2.90 | |||
| Digi-Reel® | 1 | $ 3.83 | ||
| 25 | $ 3.18 | |||
| 100 | $ 2.90 | |||
| Tape & Reel (TR) | 1000 | $ 2.90 | ||
| Microchip Direct | T/R | 1 | $ 3.83 | |
| 25 | $ 3.18 | |||
| 100 | $ 2.90 | |||
| 1000 | $ 2.79 | |||
| 5000 | $ 2.77 | |||
Description
General part information
SY89325 Series
The SY89325V is a fully differential, CML/PECL/LVPECLto-LVDS translator. It achieves LVDS signaling up to 1.5Gbps and clock rates of 750MHz, depending of the distance and the characteristics of the media and noise coupling sources. LVDS is intended to drive 50Ω impedance transmission line media such as PCB traces, backplanes, or cables.SY89325V inputs can be terminated with a single resistor between the true and complement pins of the input.The SY89325V is a member of Micrel's Precision Edge® family of high-speed logic devices. This family features ultra-small packaging, high signal integrity, and operation at many different supply voltages. For applications that require dual translators, consider the SY55855V.
