SSI-LXH072GD

Active

Lumex Opto/Components Inc.

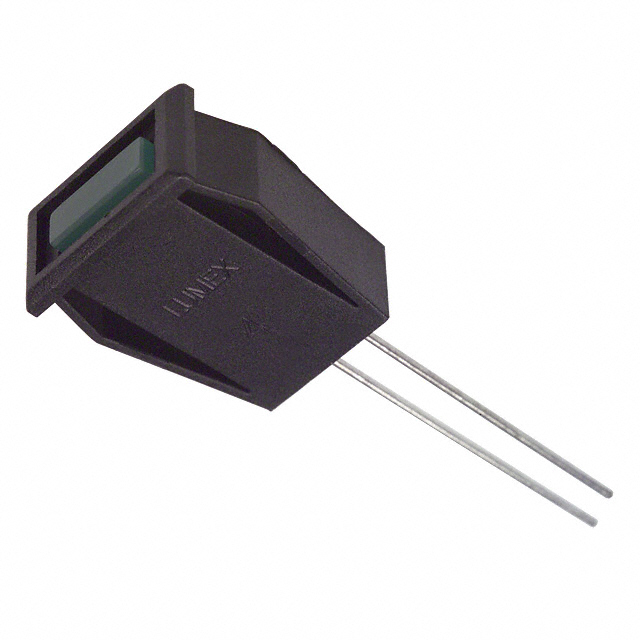

LED 2.3X7MM GREEN PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 2.3X7MM GREEN PANEL MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Diffused 110° 2.2V 25mA

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED 2.3X7MM GREEN PANEL MOUNT

Part	Lamp Color	Type	Wavelength - Peak	Panel Cutout Shape	Lens Color	Voltage	Lens Transparency	Millicandela Rating	Lens Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Viewing Angle	Lens Size [x]	Lens Size [y]	Current
Lumex Opto/Components Inc. SSI-LXH072GD	Green	LED	565 nm	Rectangle	Green	2.2 V	Diffused	9 mcd	Rectangle with Flat Top	5.3 mm	0.21 in	11 mm	0.43 in	110 °	7 mm	2.3 mm	25 mA
Lumex Opto/Components Inc. SSI-LXH072YD	Yellow	LED	585 nm	Rectangle	Yellow	2.1 V	Diffused	9 mcd	Rectangle with Flat Top	5.3 mm	0.21 in	11 mm	0.43 in	110 °	7 mm	2.3 mm	30 mA
Lumex Opto/Components Inc. SSI-LXH072SRD	Red	LED	660 nm	Rectangle	Red	1.7 V	Diffused	50 mcd	Rectangle with Flat Top	5.3 mm	0.21 in	11 mm	0.43 in	110 °	7 mm	2.3 mm	30 mA
Lumex Opto/Components Inc. SSI-LXH072SYD-150	Yellow	LED	585 nm	Rectangle	Yellow	2.1 V	Diffused	160 mcd	Rectangle with Flat Top					110 °	7 mm	2.3 mm
Lumex Opto/Components Inc. SSI-LXH072IGW3-150	Green, Red	LED	565 nm, 635 nm	Rectangle	White	2 V, 2.2 V	Diffused	9 mcd, 10 mcd	Rectangle with Flat Top					110 °	7 mm	2.3 mm	20 mA, 20 mA
Lumex Opto/Components Inc. SSI-LXH072SRD-150	Red	LED	660 nm	Rectangle	Red	1.8 V	Diffused	50 mcd	Rectangle with Flat Top					110 °	7 mm	2.3 mm
