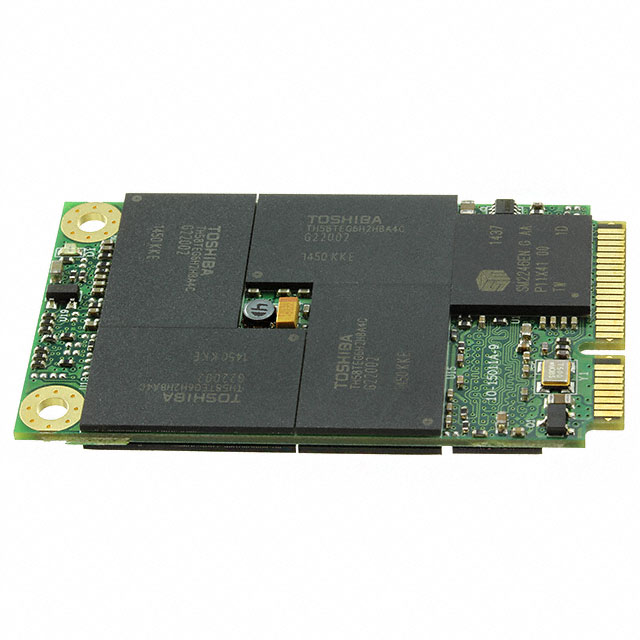

VSF302PI064G

Active

Virtium LLC

SOLID STATE DRIVE MO-300 SATA 64GBYTE 6GBPS 2960MBPS READ 2240MBPS WRITE 3.3V 2000000H

Search across all available documentation for this part.

Active

Virtium LLC

SOLID STATE DRIVE MO-300 SATA 64GBYTE 6GBPS 2960MBPS READ 2240MBPS WRITE 3.3V 2000000H

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VSF302PI064G	VSF302 Series

Form Factor	mSATA	mSATA
Memory Size	64 GB	8 - 480 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)	Solid State Drive (SSD) FLASH - NAND (SLC), Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Speed - Read	370 MB/s	370 - 530 MB/s
Speed - Write	280 MB/s	280 - 430 MB/s
Type	SATA III	SATA III
Voltage - Supply	-	3.3 V

SSD 8GB MSATA SLC SATA III 5V

Part	Speed - Read	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Speed - Write	Type	Memory Type	Voltage - Supply
Virtium LLC VSF302PI008G-100	370 MB/s	8 GB	85 °C	-40 °C	mSATA	280 MB/s	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)
Virtium LLC VSF302CC480G-100	530 MB/s	480 GB	70 °C	0 °C	mSATA	430 MB/s	SATA III	Solid State Drive (SSD) FLASH - NAND (MLC)
Virtium LLC VSF302CC120G-100	530 MB/s	120 GB	70 °C	0 °C	mSATA	430 MB/s	SATA III	Solid State Drive (SSD) FLASH - NAND (MLC)
Virtium LLC VSF302PI064G	370 MB/s	64 GB	85 °C	-40 °C	mSATA	280 MB/s	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)
Virtium LLC VSF302XI060G-150	370 MB/s	60 GB	85 °C	-40 °C	mSATA	280 MB/s	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V
Virtium LLC VSF302CC060G-100	530 MB/s	60 GB	70 °C	0 °C	mSATA	430 MB/s	SATA III	Solid State Drive (SSD) FLASH - NAND (MLC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	18	$ 472.62

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 64GB SATA III mSATA 5V

Technical documentation and resources

No documents available
