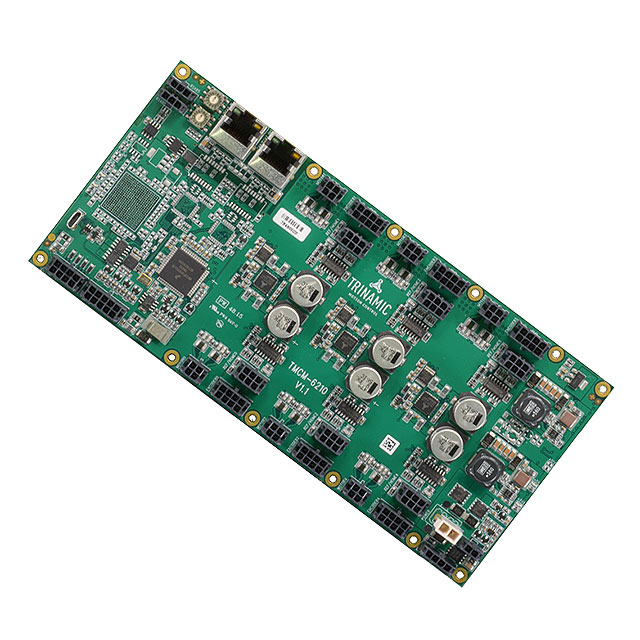

TMCM-6212-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.1A 11V-35V
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-6212-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.1A 11V-35V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-6212-CANOPEN |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 1.1 A |
| Interface | CAN, USB, RS-485 |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Number of Motors | 6 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -30 ░C |
| Type | Board |
| Voltage - Load [Max] | 35 V |
| Voltage - Load [Min] | 11 V |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 470.20 | |
TMCM-6212 Series
STEPPER DRIVER 1.1A 11V-35V
| Part | Mounting Type | Type | Current - Output | Number of Motors | Voltage - Supply | Motor Type | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Control / Drive Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-6212-CANOPEN | Chassis Mount | Board | 1.1 A | 6 | 24 VDC | Stepper | 11 V | 35 V | CAN, RS-485, USB | -30 ░C | 40 °C | Bipolar, Stepper |
Description
General part information
TMCM-6212 Series
Stepper, Bipolar 24VDC Supply 1.1A 11V ~ 35V Load
Documents
Technical documentation and resources
No documents available
