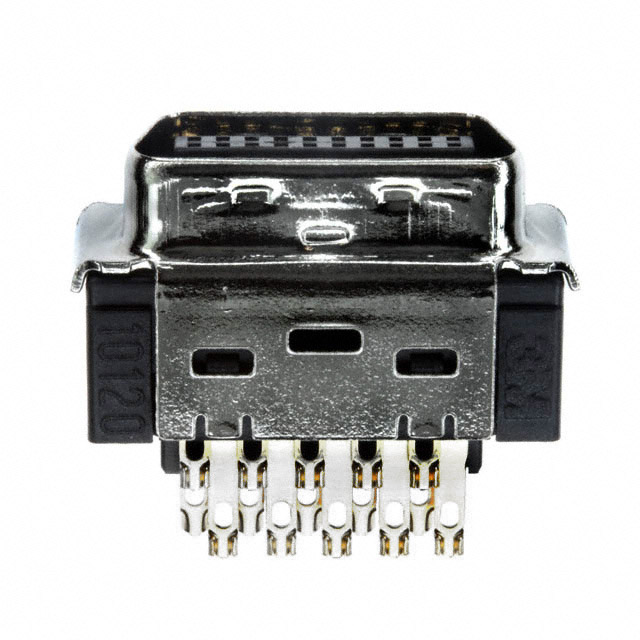

10120-3000PE
Active3M
MICRO D SUB CONNECTOR, 101 SERIES, PLUG, 20, SOLDER, CABLE MOUNT, GOLD PLATED CONTACTS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10120-3000PE | 10120 Series |
|---|---|---|
| - | - | |
| Connector Style | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.51 µm | 0.51 - 0.76 µm |
| Contact Finish Thickness | 20 µin | 20 - 30 µin |
| Features | Shielded | Shielded, Board Lock |
| Flange Feature | - | Housing/Shell, M2.5 |
| Flange Feature | - | 2.6 M |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount |
| Number of Positions | 20 | 20 |
| Number of Rows | 2 | 2 |
| Termination | - | Solder |
| Type | - | Board to Board |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
10120 Series
JE150344982 10120-52B2PC=20/MDR/RC/RA/PLUG/GRNDLK/30MIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Features | Contact Finish | Connector Type | Number of Rows | Connector Style | Mounting Type | Number of Positions | Termination | Flange Feature | Flange Feature | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.51 µm | 20 µin | Shielded | Gold | Plug | 2 | Center Strip Contacts | Free Hanging (In-Line) | 20 | |||||
0.76 Ám | 30 Áin | Board Lock, Shielded | Gold | Plug | 2 | Center Strip Contacts | Panel Mount, Right Angle, Through Hole | 20 | Solder | Housing/Shell | 2.6 M | ||
0.76 Ám | 30 Áin | Shielded | Gold | Plug | 2 | Center Strip Contacts | Panel Mount, Right Angle, Through Hole | 20 | Solder | M2.5 | Board to Board | ||
0.51 µm | 20 µin | Shielded | Gold | Plug | 2 | Center Strip Contacts | Free Hanging (In-Line) | 20 | |||||
0.76 Ám | 30 Áin | Board Lock, Shielded | Gold | Plug | 2 | Center Strip Contacts | Panel Mount, Right Angle, Through Hole | 20 | Solder | Housing/Shell | 2.6 M | Board to Board | |
0.76 Ám | 30 Áin | Board Lock, Shielded | Gold | Plug | 2 | Center Strip Contacts | Panel Mount, Right Angle, Through Hole | 20 | Solder | Housing/Shell | 2.6 M | Board to Board |
Description
General part information
10120 Series
20 Position Plug Connector Free Hanging (In-Line) Solder Cup
