M24308/24-9F

Active

TE Connectivity Aerospace, Defense and Marine

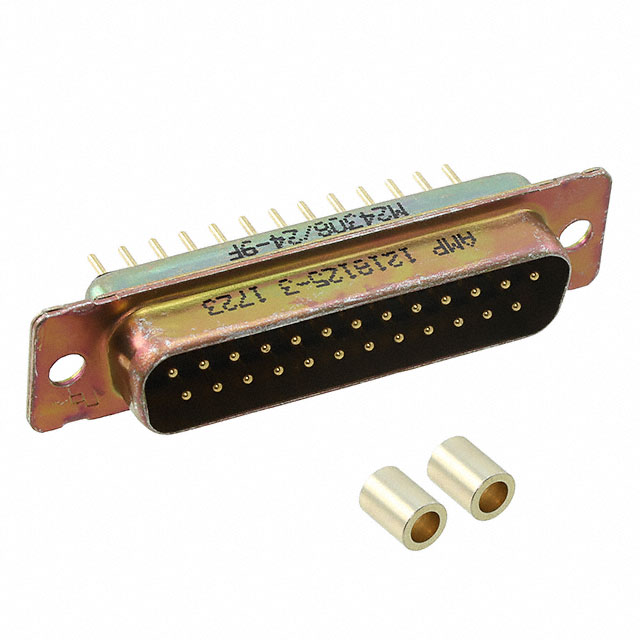

CONN D-SUB PLUG 25POS VERT SLDR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB PLUG 25POS VERT SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	M24308/24-9F	M24308/24 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Through Hole	Through Hole
Number of Positions	-	9 - 50
Number of Rows	2	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish [custom]	Steel	Steel
Shell Material, Finish [custom]	Cadmium Plated	Cadmium Plated
Shell Size, Connector Layout	-	2 - 5
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout [custom]	DB, B	DE, E, DB, B
Shell Size, Connector Layout [custom]	3	1 - 3
Termination	Solder	Solder

CONN D-SUB PLUG 15POS VERT SLDR

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Color	Contact Finish	Flange Feature	Connector Style	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Contact Material	Current Rating (Amps)	Contact Type	Connector Type	Shell Size, Connector Layout	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
TE Connectivity Aerospace, Defense and Marine M24308/24-8F	50 µin	1.27 µm	Through Hole	2	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins, Plug	2	15	-55 °C	125 °C	Solder
TE Connectivity Aerospace, Defense and Marine M24308/24-7F	50 µin	1.27 µm	Through Hole	2	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins, Plug		9	-55 °C	125 °C	Solder	DE, E	1
TE Connectivity Aerospace, Defense and Marine M24308/24-9F	50 µin	1.27 µm	Through Hole	2	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins, Plug			-55 °C	125 °C	Solder	B, DB	3
TE Connectivity Aerospace, Defense and Marine M24308/24-10F	50 µin	1.27 µm	Through Hole	2	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins, Plug		37	-55 °C	125 °C	Solder			4 (DC, C)
TE Connectivity Aerospace, Defense and Marine M24308/24-5F	50 µin	1.27 µm	Through Hole	3	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins, Plug	5	50	-55 °C	125 °C	Solder
