8213 0102000

Obsolete

Belden Inc.

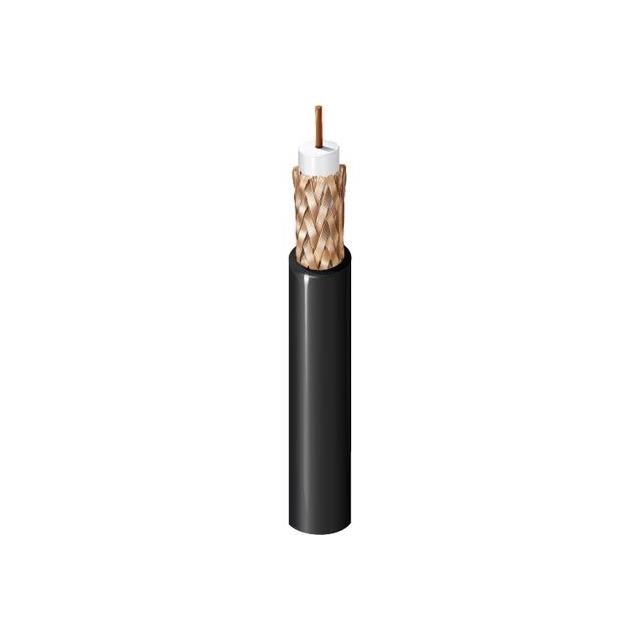

RG-11/U TYPE COAX

Search across all available documentation for this part.

Obsolete

Belden Inc.

RG-11/U TYPE COAX

Technical Specifications

Parameters and characteristics for this part

Specification	8213 0102000

Cable Group	RG-11
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length [x]	2000 ft
Length [x]	609.6 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-55 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video
VoP, Velocity of Propagation	84
Wire Gauge	13.5 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Conductor Material	Cable Type	Shield Coverage	VoP, Velocity of Propagation	Shield Type	Jacket (Insulation) Material	Jacket Color	Length [x]	Length [x]	Shield Material	Cable Group	Impedance	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]
Belden Inc. 8213 0102000	10.29 mm	0.405 in	Video	13.5 AWG	80 C	-55 °C	Solid	Copper Bare	Coaxial	95 %	84	Braid	Polyethylene (PE)	Black	2000 ft	609.6 m	Copper Bare	RG-11	75 Ohms	7.24 mm	0.285 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 14 AWG RG-11 2000.0' (609.60m) 75 Ohms
