1036A 0101000

Active

Belden Inc.

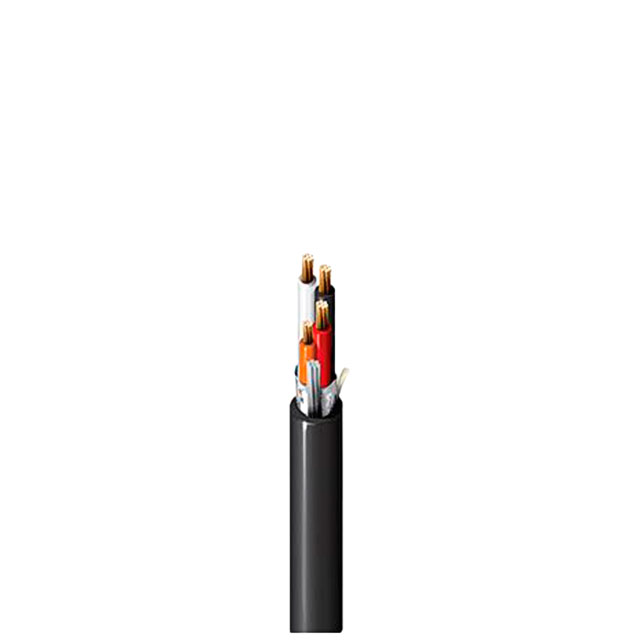

CABLE 3COND 18AWG BLACK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG BLACK SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1036A 0101000	1036A Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	26 AWG	26 AWG
Conductor Strand [custom]	7	7
Features	Rip Cord, Drain Wire	Rip Cord, Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm	0.94 mm
Jacket (Insulation) Thickness	0.037 in	0.037 in
Jacket Color	Black	Blue, Black
Length	1000 ft	1000 ft
Length	304.8 m	304.8 - 3048 m
Length	-	10000 ft
Number of Conductors	3	3
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 2464	UL Style 2464
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Wire Gauge	18 AWG	18 AWG

CABLE 3CON 18AWG BLUE SHLD

Part	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Shield Type	Length	Length	Ratings	Conductor Insulation	Shield Coverage	Number of Conductors	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Length [x]
Belden Inc. 1036A 0061000	Poly-Vinyl Chloride (PVC)	Blue	0.94 mm	0.037 in	Multi-Conductor	Foil	1000 ft	304.8 m	UL Style 2464	Poly-Vinyl Chloride (PVC)	100 %	3	Drain Wire, Rip Cord	-30 ░C	105 ░C	Aluminum	Copper, Bare	26 AWG	7	18 AWG
Belden Inc. 1036A 0105000	Poly-Vinyl Chloride (PVC)	Black	0.94 mm	0.037 in	Multi-Conductor	Foil			UL Style 2464	Poly-Vinyl Chloride (PVC)	100 %	3	Drain Wire, Rip Cord	-30 ░C	105 ░C	Aluminum	Copper, Bare	26 AWG	7	18 AWG
Belden Inc. 1036A 0101000	Poly-Vinyl Chloride (PVC)	Black	0.94 mm	0.037 in	Multi-Conductor	Foil	1000 ft	304.8 m	UL Style 2464	Poly-Vinyl Chloride (PVC)	100 %	3	Drain Wire, Rip Cord	-30 ░C	105 ░C	Aluminum	Copper, Bare	26 AWG	7	18 AWG
Belden Inc. 1036A 01010000	Poly-Vinyl Chloride (PVC)	Black	0.94 mm	0.037 in	Multi-Conductor	Foil		3048 m	UL Style 2464	Poly-Vinyl Chloride (PVC)	100 %	3	Drain Wire, Rip Cord	-30 ░C	105 ░C	Aluminum	Copper, Bare	26 AWG	7	18 AWG	10000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (1 Triad Twisted) Conductor Multi-Conductor Cable Black 18 AWG Foil 1000.0' (304.8m)
