B82442H1475J000
ObsoleteEPCOS - TDK Electronics
FIXED IND 4.7MH 50MA 62.4OHM SMD
B82442H1475J000
ObsoleteEPCOS - TDK Electronics
FIXED IND 4.7MH 50MA 62.4OHM SMD
Description
General part information
B82442H1475J000

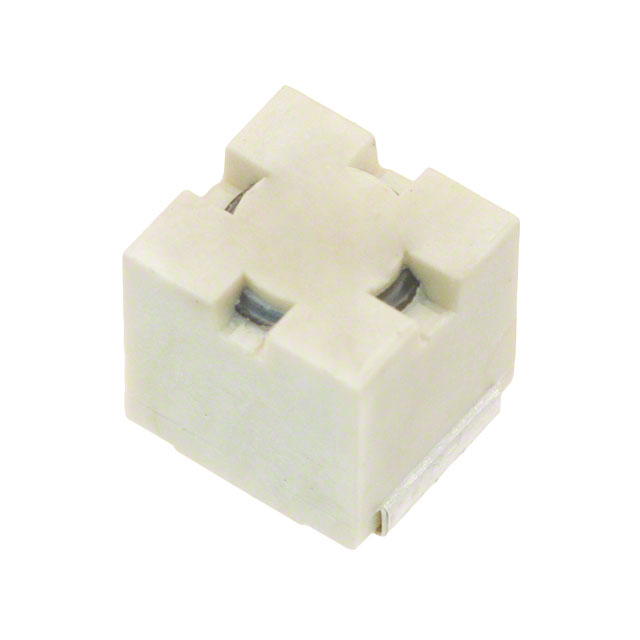

4.7 mH Unshielded Drum Core, Wirewound Inductor 50 mA 62.4Ohm Max 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B82442H1475J000 |
|---|---|
| Current Rating | 50 mA |
| DC Resistance (DCR) (Max) | 62.4 Ohm |
| Frequency - Self Resonant | 900 kHz |
| Height - Seated (Max) | 0.209 in |
| Inductance | 4.7 mH |
| Inductance Frequency - Test | 252 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, J-Lead |
| Package Name | 2220 (5650 Metric) |
| Q | 30 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
