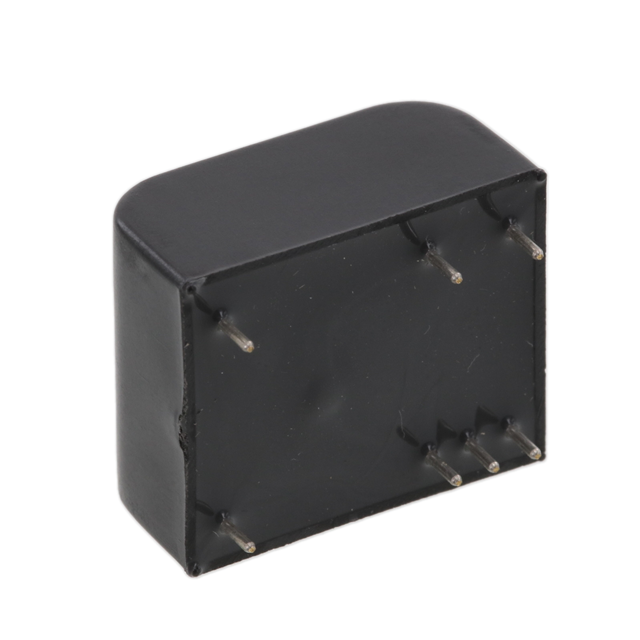

BPWX 1-14-33

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 3.3V 556MW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BPWX 1-14-33

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 3.3V 556MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.00
		5	$ 8.87
		20	$ 8.74
		40	$ 7.97
		100	$ 7.71
		260	$ 7.45
		500	$ 7.20

Description

General part information

BPWX 1 Series

Enclosed AC DC Converters 2 Output 14V 23mA, 71mA 90 ~ 308 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPWX 1-14-33	BPWX 1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus	CB, cURus
Current - Output (Max)	71 mA, 23 mA	23 - 125 mA
Efficiency	70 %	70 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module	7-DIP Module
Power (Watts)	556 mW	1.3 - 837 mW
Size / Dimension [x]	27.9 mm	27.9 mm
Size / Dimension [x]	1.1 "	1.1 "
Size / Dimension [y]	0.92 "	0.92 "
Size / Dimension [y]	23.2 mm	23.2 mm
Size / Dimension [z]	0.55 in	0.55 in
Size / Dimension [z]	14 mm	14 mm
Type	Enclosed	Enclosed
Voltage - Input [Max]	308 VAC	308 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	14 V	8 - 16 V

BPWX 1 Series

AC/DC CONVERTER 16V 1W

Part	Efficiency	Number of Outputs	Approval Agency	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Voltage - Output 1	Current - Output (Max)	Power (Watts)
Cita Technologies, LLC. BPWX 1-16-00	70 %	1	CB, cURus	Enclosed	7-DIP Module	85 °C	-40 °C	90 VAC	308 VAC	Through Hole	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	16 V
Cita Technologies, LLC. BPWX 1-08-00	70 %	1	CB, cURus	Enclosed	7-DIP Module	85 °C	-40 °C	90 VAC	308 VAC	Through Hole	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	8 V
Cita Technologies, LLC. BPWX 1-14-33	70 %	2	CB, cURus	Enclosed	7-DIP Module	85 °C	-40 °C	90 VAC	308 VAC	Through Hole	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	14 V	23 mA, 71 mA	556 mW
Cita Technologies, LLC. BPWX 1-08-33	70 %	2	CB, cURus	Enclosed	7-DIP Module	85 °C	-40 °C	90 VAC	308 VAC	Through Hole	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	8 V	53 mA, 125 mA	837 mW
Cita Technologies, LLC. BPWX 1-14-50	70 %	2	CB, cURus	Enclosed	7-DIP Module	85 °C	-40 °C	90 VAC	308 VAC	Through Hole	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	14 V	28 mA, 71 mA	747 mW
Cita Technologies, LLC. BPWX 1-12-00	70 %	1	CB, cURus	Enclosed	7-DIP Module	85 °C	-40 °C	90 VAC	308 VAC	Through Hole	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	12 V
Cita Technologies, LLC. BPWX 1-08-50	70 %	2	CB, cURus	Enclosed	7-DIP Module	85 °C	-40 °C	90 VAC	308 VAC	Through Hole	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	8 V	83 mA, 125 mA	1.3 W
Cita Technologies, LLC. BPWX 1-14-00	70 %	1	CB, cURus	Enclosed	7-DIP Module	85 °C	-40 °C	90 VAC	308 VAC	Through Hole	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	14 V
