961208-5500-AR-TP

Obsolete

3M (TC)

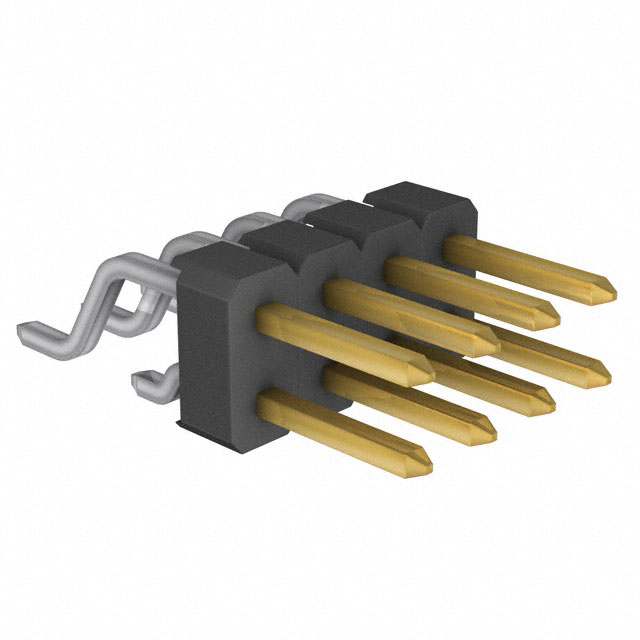

CONN HEADER SMD R/A 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

961208-5500-AR-TP

Obsolete

3M (TC)

CONN HEADER SMD R/A 8POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	961208-5500-AR-TP

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

961208 Series

Part	Shrouding	Connector Type	Material Flammability Rating	Contact Finish Thickness - Mating	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Shape	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Termination	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Material	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating
3M (TC) 961208-6404-AR	Unshrouded	Header	UL94 V-0	Flash	Push-Pull	0.098 in	2.5 mm	Tin	Copper Alloy	2.54 mm	0.1 in	2	Square	8	Through Hole	-25 °C	105 ░C	Male Pin	2 A	11.3 mm	0.445 "	0.1 in	2.54 mm	All	0.217 in	5.5 mm	Solder	0.13 in	3.3 mm	Black	Thermoplastic	Gold	1 çm	39.4 çin
3M (TC) 961208-6700-AR-TP	Unshrouded	Header	UL94 V-0	Flash	Push-Pull	0.098 in	2.5 mm	Tin	Copper Alloy	2.54 mm	0.1 in	2	Square	8	Surface Mount	-25 °C	105 ░C	Male Pin	2 A			0.1 in	2.54 mm	All			Solder			Black	Thermoplastic	Gold	1 çm	39.4 çin	6.6 mm	0.26 in
3M (TC) 961208-5500-AR-TP	Unshrouded	Header	UL94 V-0	Flash	Push-Pull			Tin	Copper Alloy	2.54 mm	0.1 in	2	Square	8	Surface Mount Right Angle	-25 °C	105 ░C	Male Pin	2 A			0.1 in	2.54 mm	All	5.84 mm		Solder			Black	Thermoplastic	Gold	1 çm	39.4 çin			0.197 in	5 mm	0.23 in
3M (TC) 961208-6804-AR	Unshrouded	Header	UL94 V-0	Flash	Push-Pull	0.098 in	2.5 mm	Tin	Copper Alloy	2.54 mm	0.1 in	2	Square	8	Through Hole	-25 °C	105 ░C	Male Pin	2 A	12.6 mm	0.496 in	0.1 in	2.54 mm	All	6.8 mm		Solder	0.13 in	3.3 mm	Black	Thermoplastic	Gold	1 çm	39.4 çin						0.268 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

961208 Series

Connector Header Surface Mount, Right Angle 8 position 0.100" (2.54mm)
