12053209

Active

Bopla Enclosures

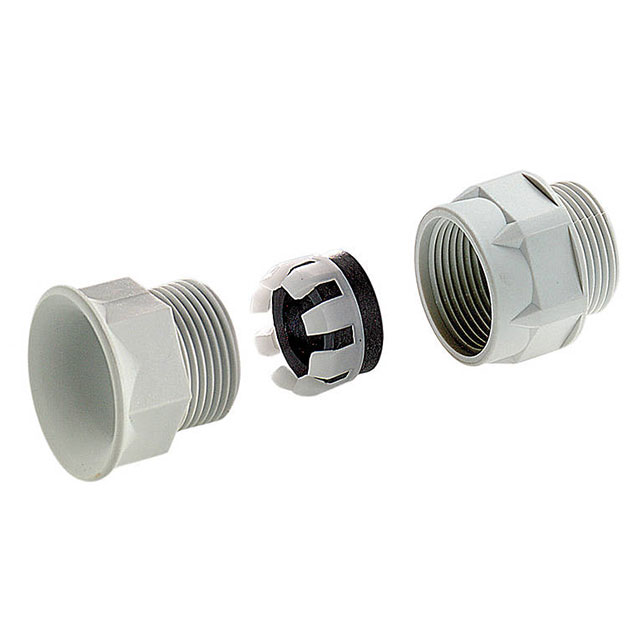

CABLE GLAND 18.01-24MM PG29

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 18.01-24MM PG29

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12053209	12053 Series

Color	Gray	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-30 - -20 C
Outside Cable Diameter (Max)	-	0.709 in
Outside Cable Diameter (Max)	-	18.01 mm
Outside Cable Diameter (Max) [Max]	24 mm	14 - 24 mm
Outside Cable Diameter (Max) [Max]	0.945 in	0.551 - 0.945 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in	0.472 - 0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm	12 - 18.01 mm
Thread Length	0.433 in	0.394 - 0.433 in
Thread Length	11 mm	10 - 11 mm
Thread Size	PG29	PG29, PG16, PG21
Type	Cable Gland	Cable Gland

CABLE GLAND 18.01-24MM PG29

Part	Thread Size	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Thread Length	Thread Length	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Bopla Enclosures 12053209	PG29	Gray	0.709 in	18.01 mm	Polyamide (PA), Nylon	100 °C	-20 C	24 mm	0.945 in	IP65 - Dust Tight, Water Resistant	0.433 in	11 mm	Cable Gland
Bopla Enclosures 12053009	PG16	Gray	0.472 in	12 mm	Polyamide (PA), Nylon	100 °C	-30 ░C	14 mm	0.551 "	IP65 - Dust Tight, Water Resistant	0.394 in	10 mm	Cable Gland
Bopla Enclosures 12053109	PG21	Gray	0.551 in	14 mm	Polyamide (PA), Nylon	100 °C	-20 C			IP65 - Dust Tight, Water Resistant	0.433 in	11 mm	Cable Gland	0.709 in	18.01 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 7.80

General part information

Cable Gland Polyamide (PA), Nylon PG29 Gray
