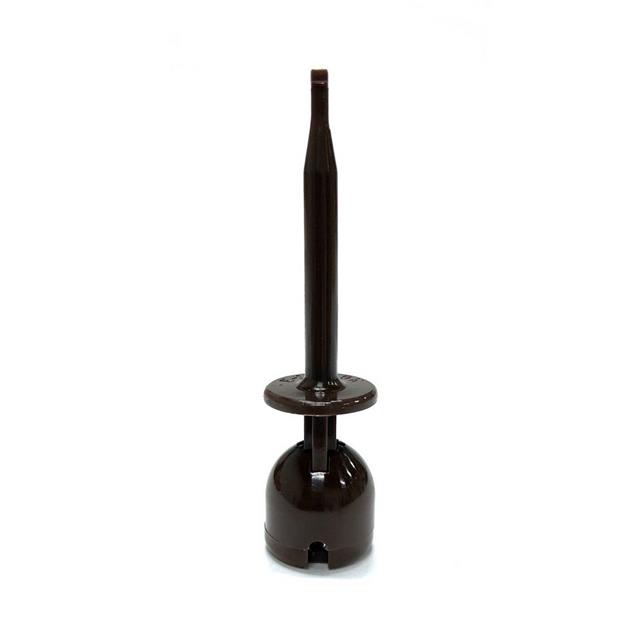

X100WBRN

Active

E-Z-Hook

MINI-HOOK BROWN SOLDER 0.093"

Search across all available documentation for this part.

Active

E-Z-Hook

MINI-HOOK BROWN SOLDER 0.093"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X100WBRN	X100W Series

Color	Brown	White, Red, Green, Black, Gray, Brown, Yellow
Features	Push Button Style	Push Button Style, Non-Magnetic
Hook Type	Hook	Hook
Hook, Pincer Opening [z]	4.57 mm	4.57 mm
Hook, Pincer Opening [z]	0.18 in	0.18 in
Length	2.25 in	2.25 in
Length	57.15 mm	57.15 mm
Length		-
Length - Barrel [x]	1.42 "	1.42 "
Length - Barrel [x]	36.07 mm	36.07 mm
Quantity	1 Box	1 Box
Temperature Range	93 °C	93 °C
Temperature Range	200 °F	200 °F

MINI-HOOK WHITE SOLDER 0.093"

Part	Color	Hook, Pincer Opening [z]	Hook, Pincer Opening [z]	Features	Hook Type	Length	Length	Length - Barrel [x]	Length - Barrel [x]	Quantity	Temperature Range	Temperature Range
E-Z-Hook X100WWTE	White	4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box	93 °C	200 °F
E-Z-Hook X100WORN		4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box	93 °C	200 °F
E-Z-Hook X100WXRED	Red	4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box
E-Z-Hook X100WGRN	Green	4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box	93 °C	200 °F
E-Z-Hook X100WXBLK	Black	4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box
E-Z-Hook X100W2ABLK	Black	4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box	93 °C	200 °F
E-Z-Hook X100WGRY	Gray	4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box	93 °C	200 °F
E-Z-Hook X100W-NMBLK	Black	4.57 mm	0.18 in	Non-Magnetic, Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box	93 °C	200 °F
E-Z-Hook X100WBRN	Brown	4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box	93 °C	200 °F
E-Z-Hook X100WYEL	Yellow	4.57 mm	0.18 in	Push Button Style	Hook	2.25 in	57.15 mm	1.42 "	36.07 mm	1 Box	93 °C	200 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brown Mini Solder, 0.090" (2.29mm) Wire Opening Features Push Button Style
