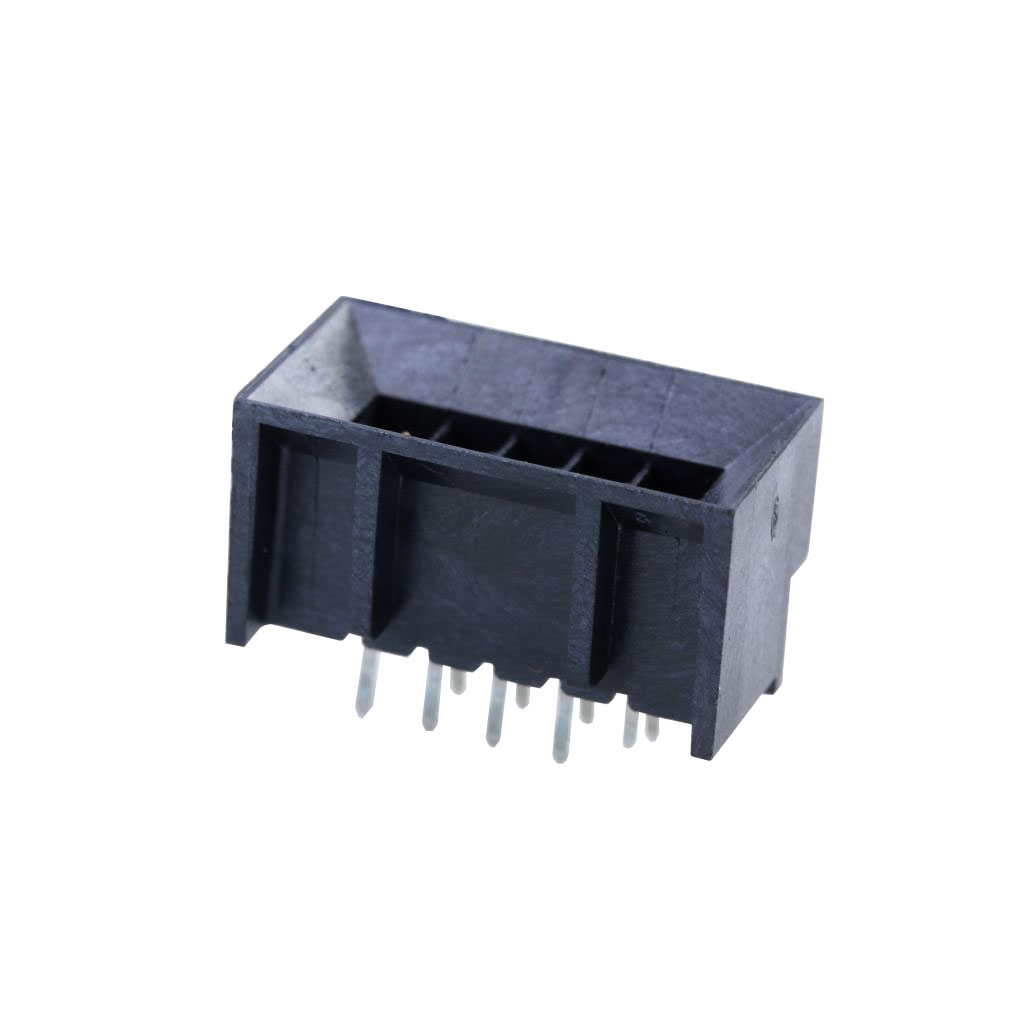

Specification	0444321034

Applications	Telecommunications, Military, Medical, General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.11 in
Contact Material	Brass Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	Board Guide, Blind Mating
Insulation Color	Black
Insulation Height	0.457 in
Insulation Material	Glass Filled, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.118 in
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Kinked Pin, Solder
Voltage Rating	600 V
Voltage Rating (Type)	DC

044432 Series

Part	Row Spacing - Mating	Connector Type	Contact Shape	Contact Material	Insulation Material	Insulation Color	Contact Type	Number of Positions	Style	Mounting Type	Insulation Height	Number of Rows	Pitch - Mating	Termination	Number of Positions Loaded	Material Flammability Rating	Features	Contact Finish - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Length - Post	Fastening Type	Contact Finish - Post	Applications	Contact Finish Thickness - Post	Voltage Rating	Voltage Rating (Type)	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating

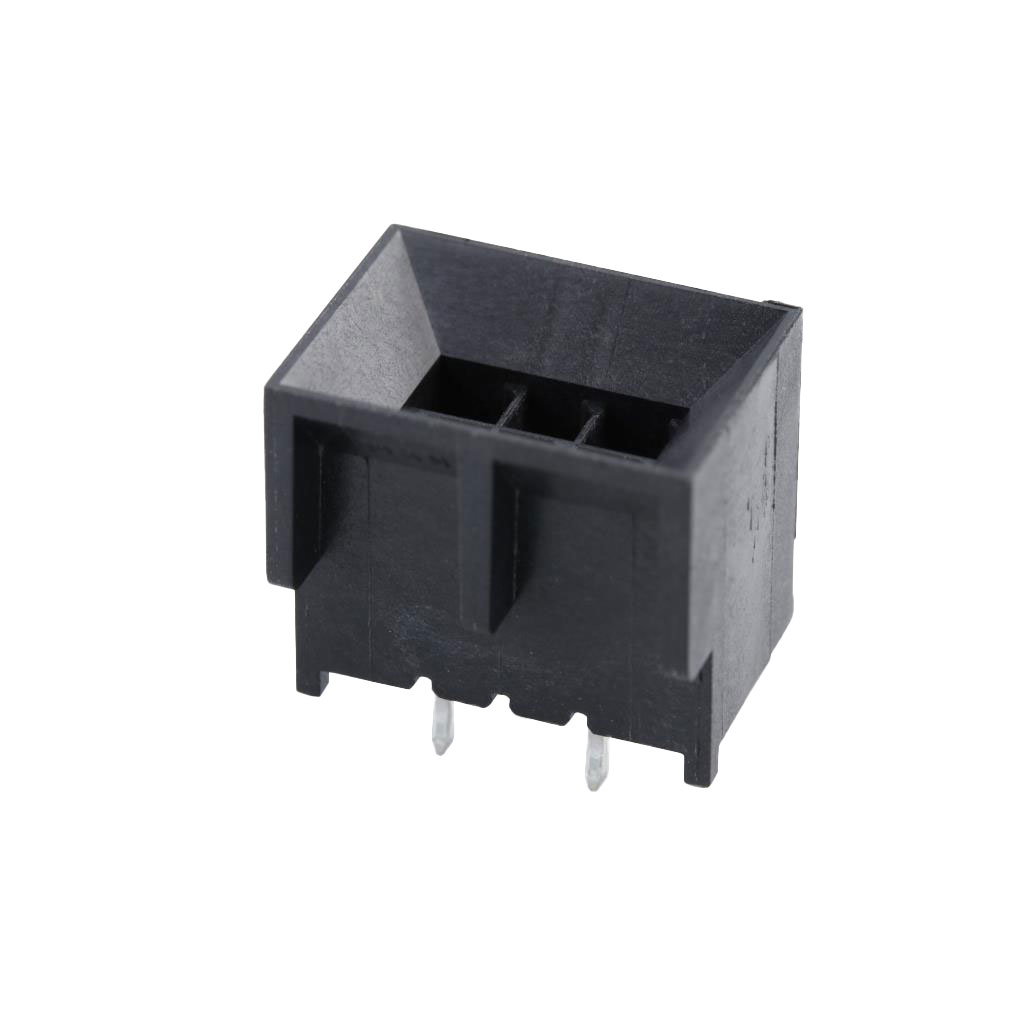

Molex 0444320603	0.118 in	Header	Square	Brass	Glass Filled Nylon Polyamide (PA)	Black	Male Pin	6	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Press-Fit Solder	All	UL94 V-0	Blind Mating Board Guide	Gold	30 µin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin	General Purpose Medical Military Telecommunications	100 Ąin
Molex 0444320652	0.118 in	Header	Square	Brass	Glass Filled Nylon Polyamide (PA)	Black	Male Pin	6	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Press-Fit Solder	All	UL94 V-0	Blind Mating Board Guide	Gold	15 µin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin	General Purpose Medical Military Telecommunications	100 Ąin
Molex 0444321202	0.118 in	Header	Square	Brass	Glass Filled Nylon Polyamide (PA)	Black	Male Pin	12	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Press-Fit Solder	All	UL94 V-0	Blind Mating Board Guide	Gold	15 µin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin	General Purpose Medical Military Telecommunications	100 Ąin
Molex 0444322401	0.118 in	Header	Square	Brass	Glass Filled Nylon Polyamide (PA)	Black	Male Pin	24 pos	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Press-Fit Solder	All	UL94 V-0	Blind Mating Board Guide	Tin	200 Ąin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin	General Purpose Medical Military Telecommunications	200 µin
Molex 0444321401	0.118 in	Header	Square	Brass	Glass Filled Nylon Polyamide (PA)	Black	Male Pin	14	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Press-Fit Solder	All	UL94 V-0	Blind Mating Board Guide	Tin	200 Ąin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin	General Purpose Medical Military Telecommunications	200 µin
Molex 0444322410	0.118 in	Header	Square	Brass Alloy	Glass Filled Liquid Crystal Polymer (LCP)	Black	Male Pin	24 pos	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Solder	All	UL94 V-0	Blind Mating Board Guide	Tin	100 µin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin			600 V	DC	-40 °C	105 °C	8.5 A

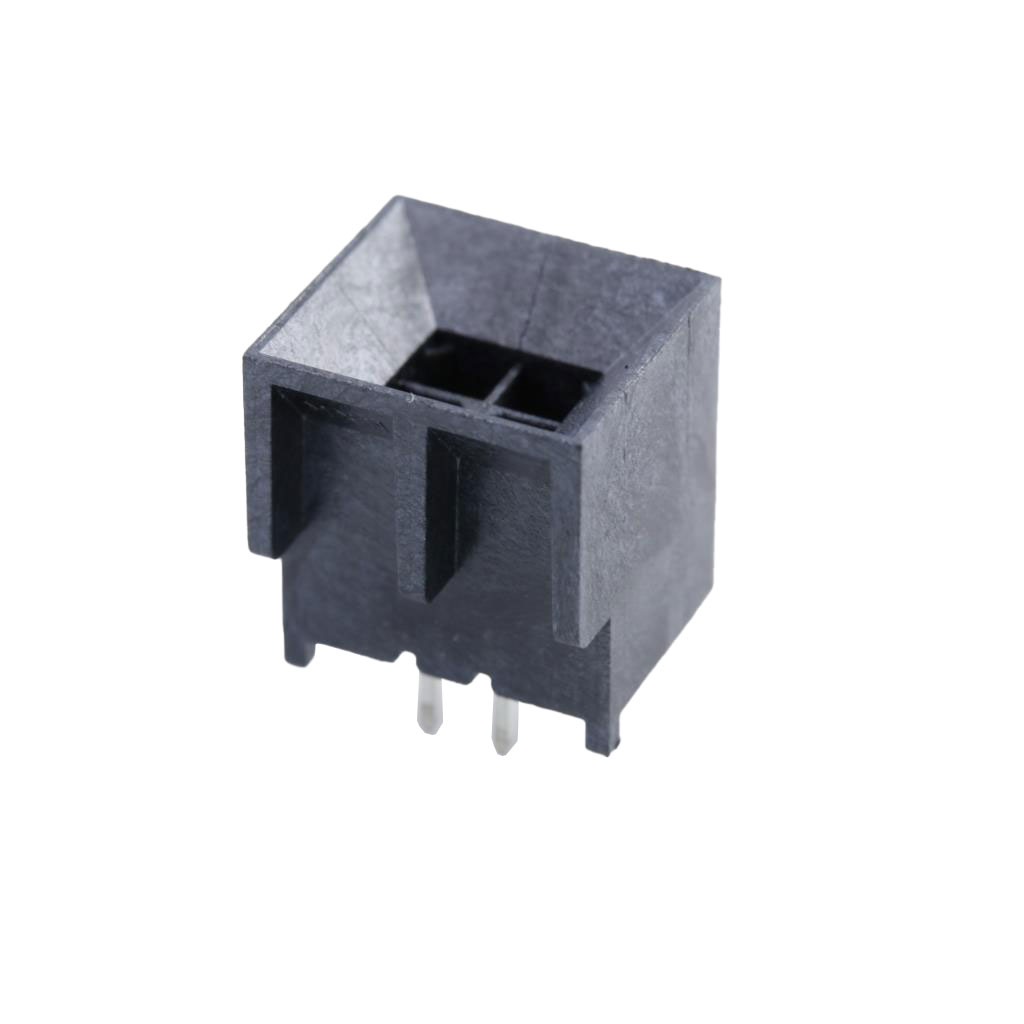

Molex 0444320412	0.118 in	Elevated Header	Square	Brass Alloy	Glass Filled Liquid Crystal Polymer (LCP)	Black	Male Pin	4	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Solder	All	UL94 V-0	Blind Mating Board Guide	Gold	30 µin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin			600 V	DC	-40 °C	105 °C	8.5 A
Molex 0444321801	0.118 in	Header	Square	Brass	Glass Filled Nylon Polyamide (PA)	Black	Male Pin	18	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Press-Fit Solder	All	UL94 V-0	Blind Mating Board Guide	Tin	200 Ąin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin	General Purpose Medical Military Telecommunications	200 µin
Molex 0444321402	0.118 in	Header	Square	Brass	Glass Filled Nylon Polyamide (PA)	Black	Male Pin	14	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Press-Fit Solder	All	UL94 V-0	Blind Mating Board Guide	Gold	15 µin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin	General Purpose Medical Military Telecommunications	100 Ąin
Molex 0444320601	0.118 in	Header	Square	Brass	Glass Filled Nylon Polyamide (PA)	Black	Male Pin	6	Board Board or Cable	Through Hole	0.457 in	2	0.118 in	Press-Fit Solder	All	UL94 V-0	Blind Mating Board Guide	Tin	200 Ąin	Shrouded - 4 Wall	0.13 in	Push-Pull	Tin	General Purpose Medical Military Telecommunications	200 µin
