Description
General part information
BOS011E

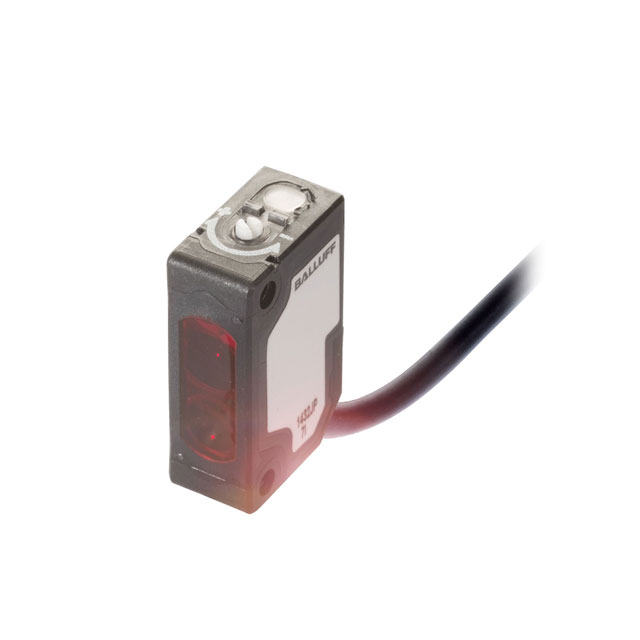

Diffuse, Background Suppression Optical Sensor 7.874" (200mm) NPN-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | BOS011E |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 660 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NPN-NO |
| Sensing Distance | 7.874 " |
| Sensing Method | Background Suppression, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
